APV
APV N35

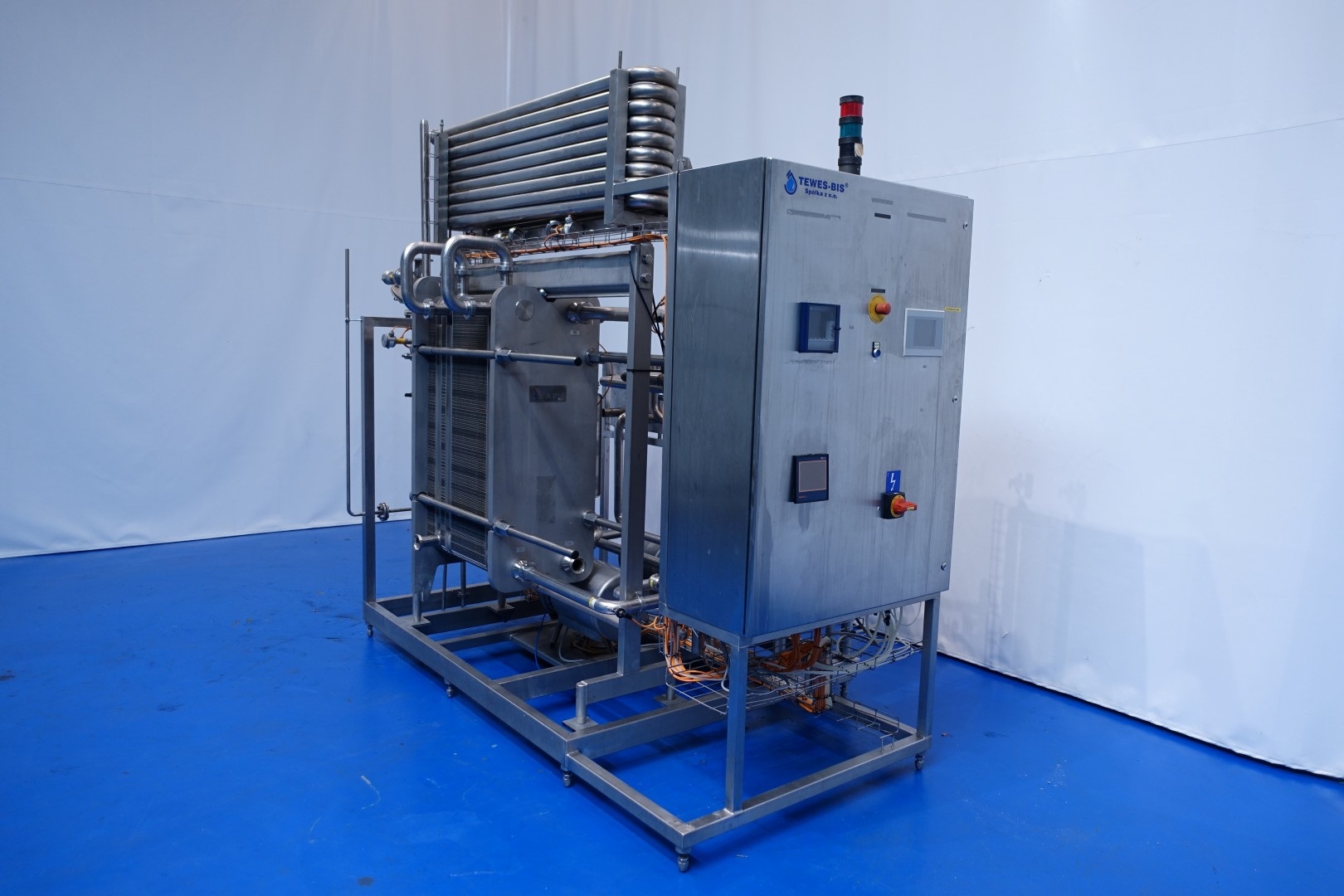

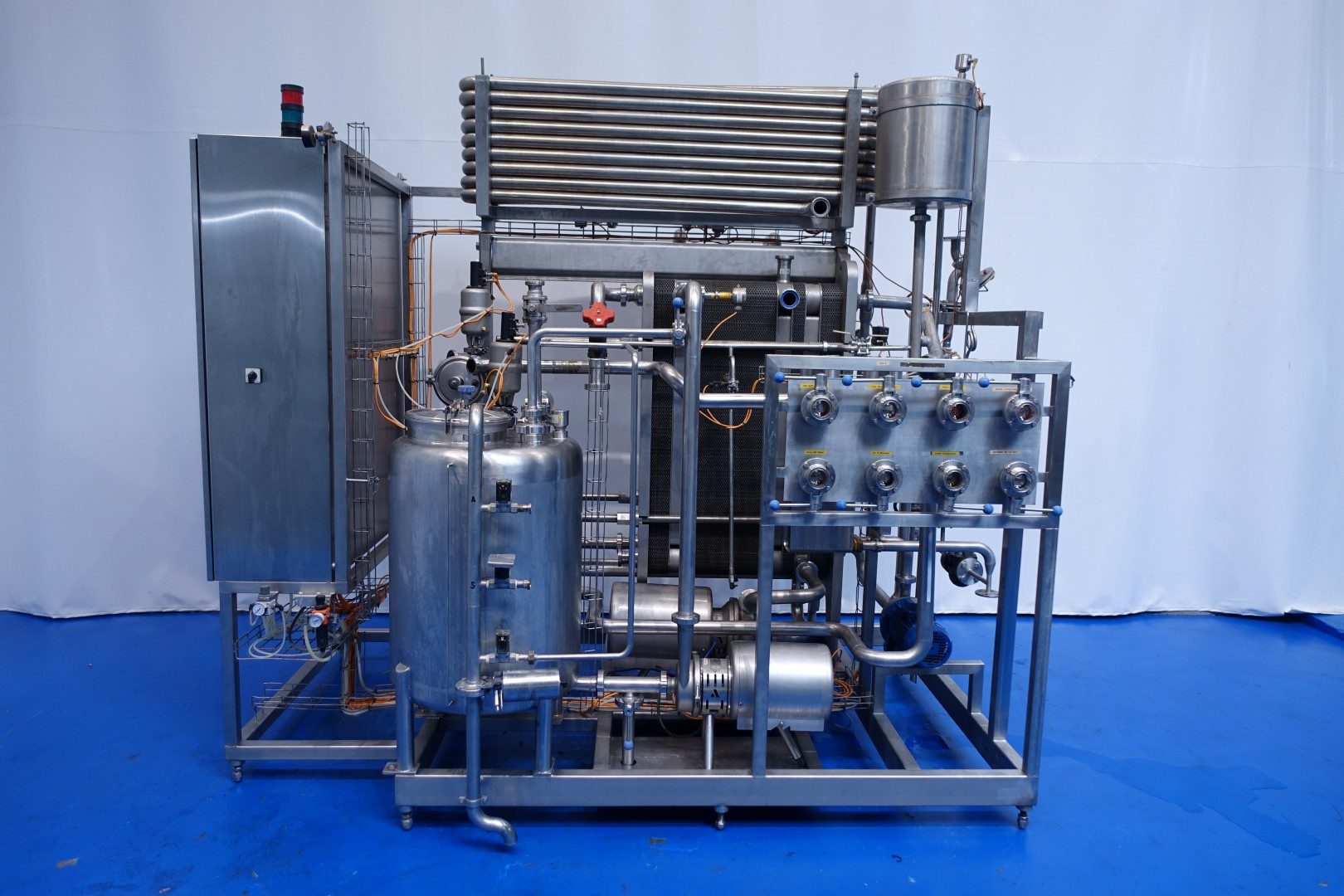

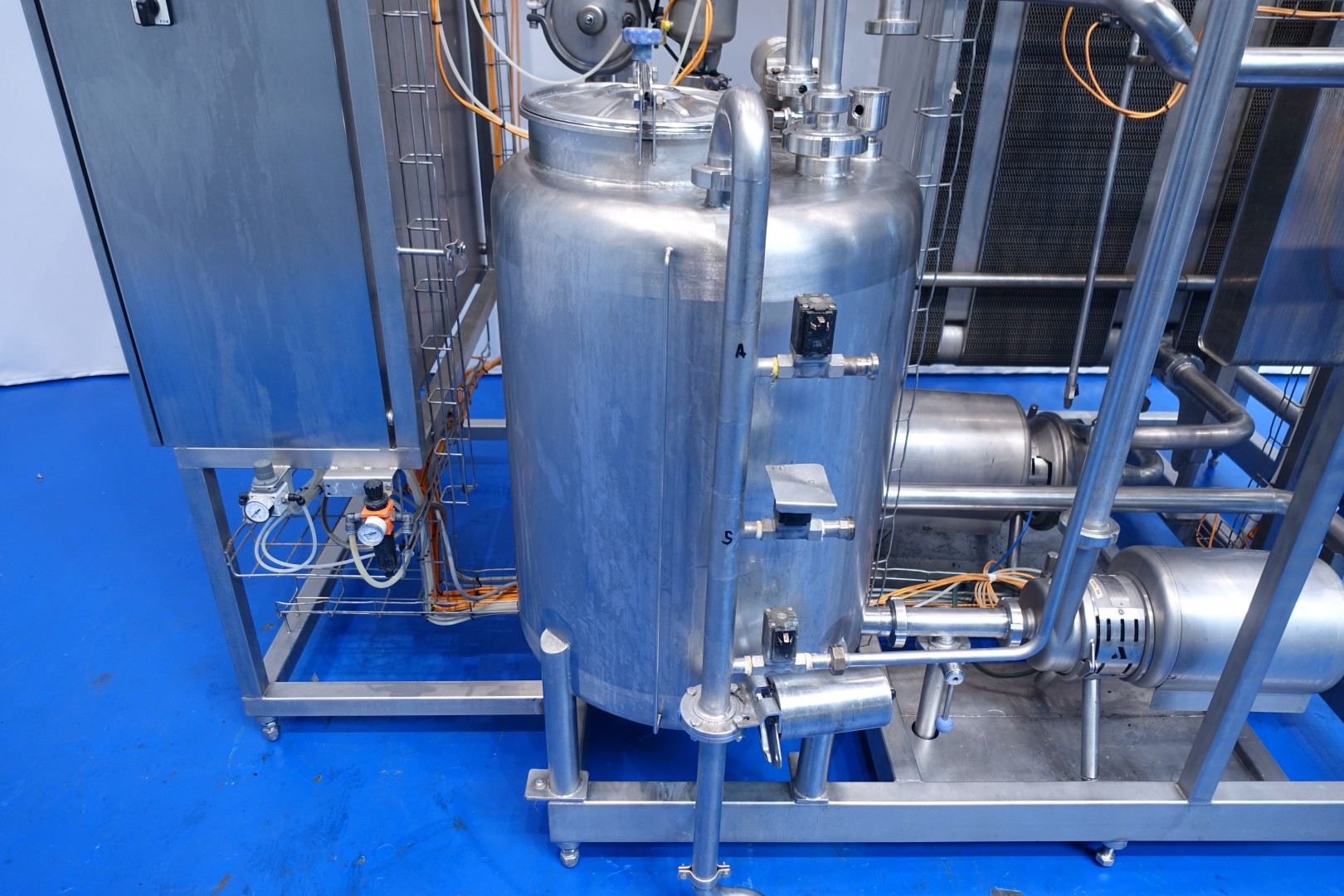

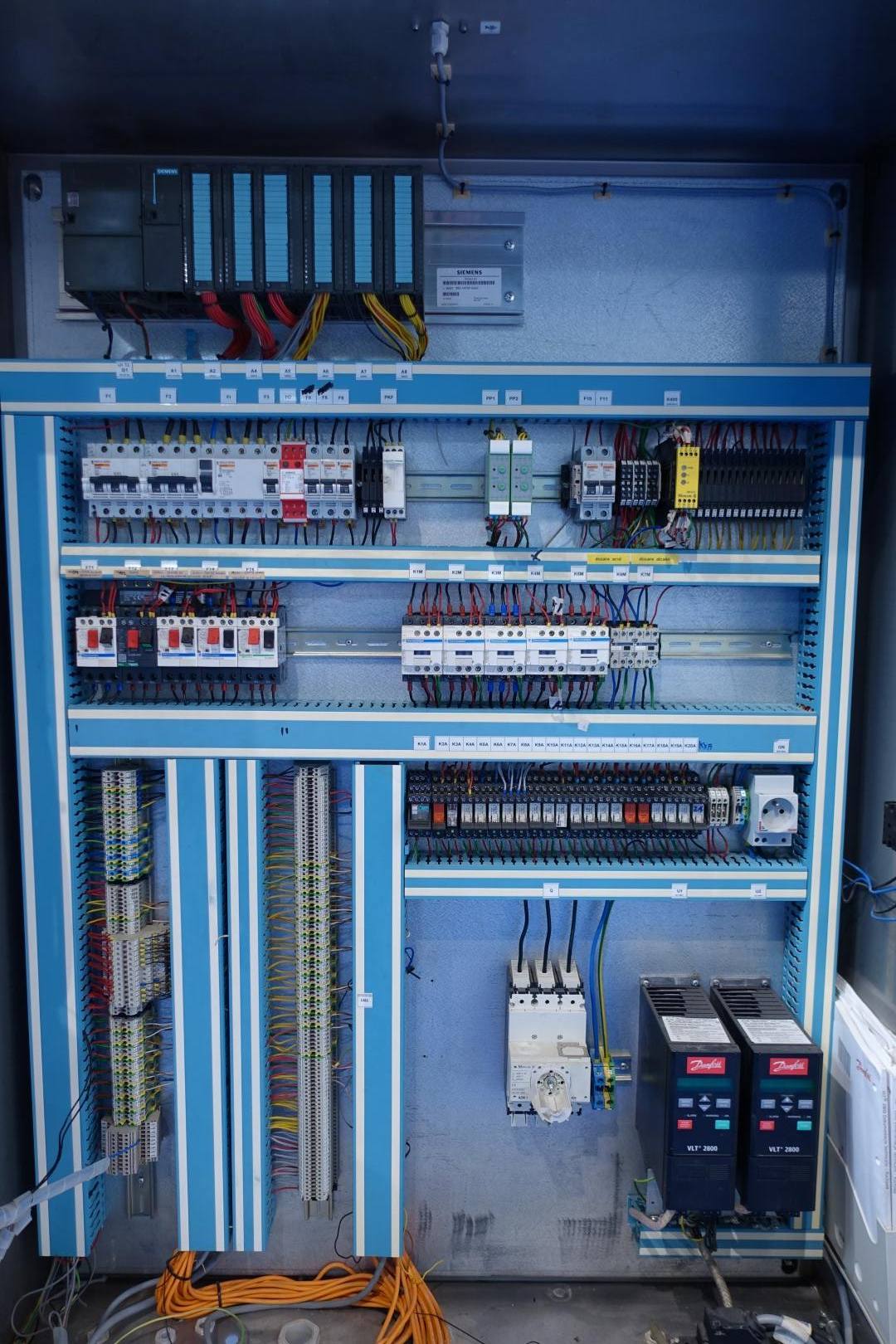

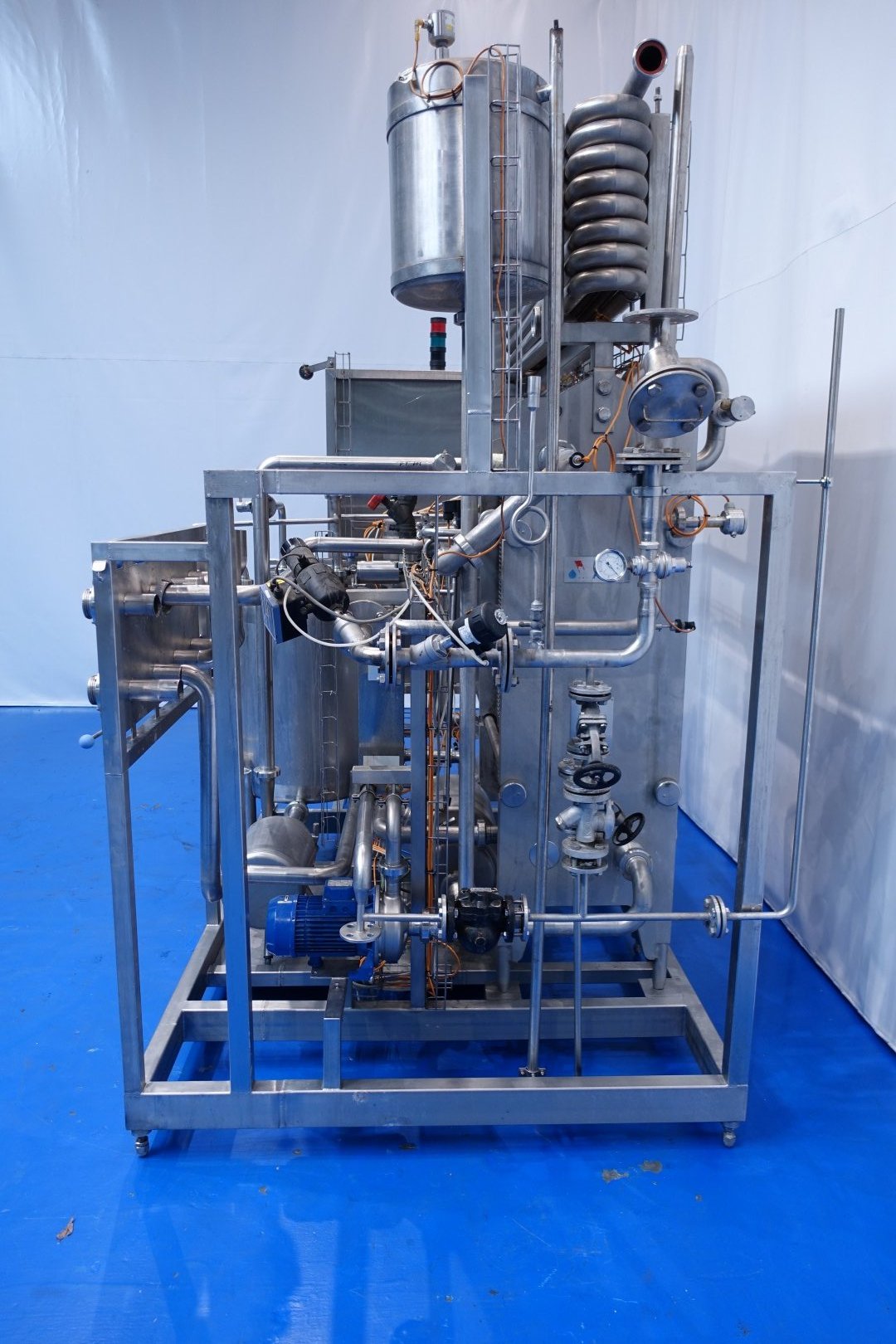

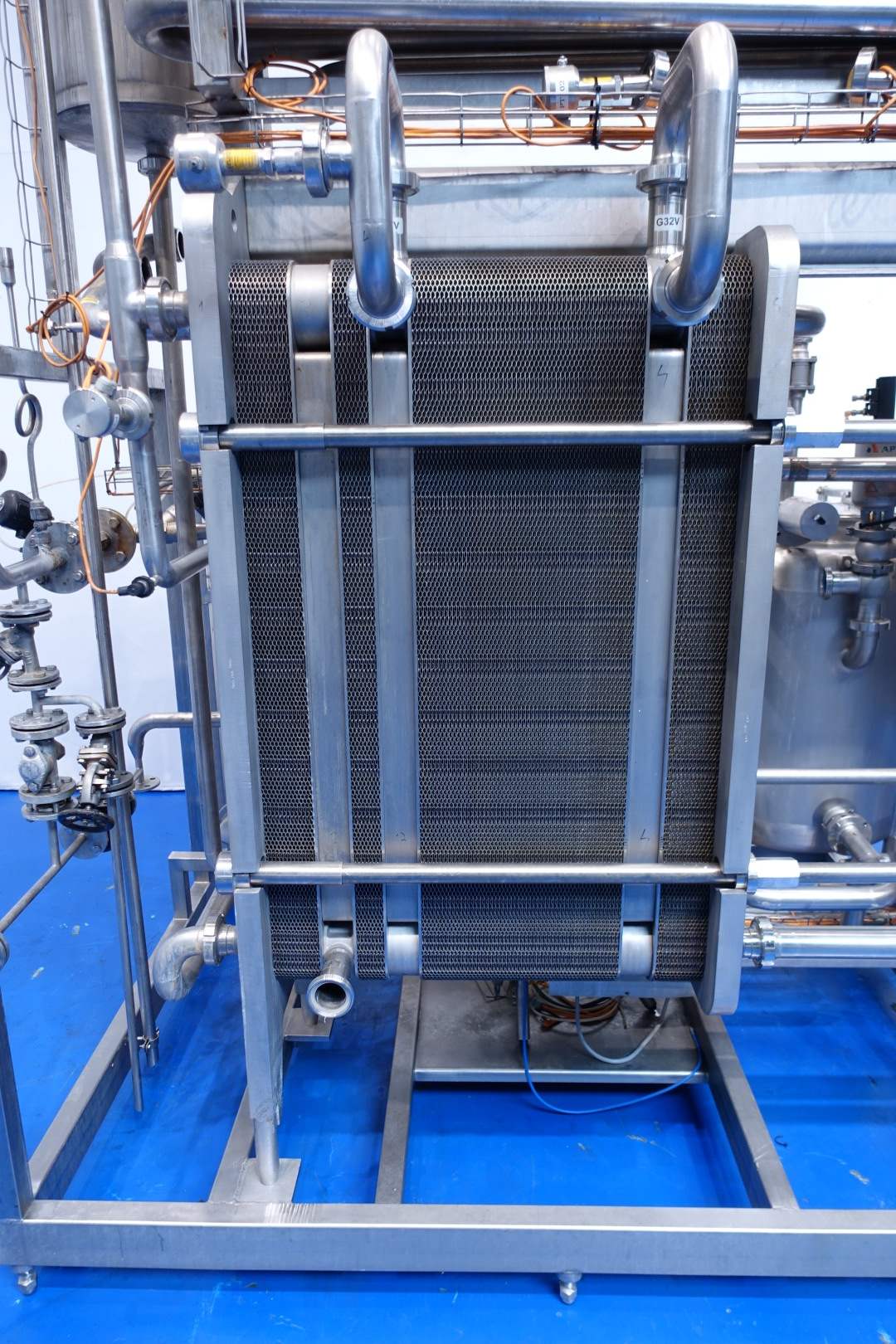

Milk pasteurization unit. complete skid mounted unit with all piping, valves on 1 stainless steel frame. Temperature scheme of milk: in 4°C -> outlet to homogeniser and/or separator (homogeniser/separator excluded) -> at approx 60-65 °C -> Pasteurization adjustable 72 - 95 °C -> holding 20 sec. -> Out 4 °C. Main component: plate heat exchanger Manufacturer: SPX-APV model: N35 (serial nr 71559). Working pressure: 10 bar. Beam length: 140 cm, 4 Sections: 26-15-105-26 plates (total 172). Holding tube mounted on top op the skid. Infeed Balance vessel 200ltr with 1 x CIP spray bowl, manhole in top (round 30 cm), level sensors. Feed pump, APV W 22/20 dairy feed pump (impellor 95 mm - motor 1,1 Kw). APV W+55/35 dairy booster pump (impellor 180 mm - motor 3,0 Kw). With Siemens Flowtransmitter, pressure sensors (over pressure system, milk on rawmilk side is maintained at higher pressure than on pasteurised milk side by a booster pump and controlled by pressure transmitters) and temperature sensors. Flow diversion and circulation valve (make APV). Steam heated with Steam control valve Bürkert, hotwater circulation pump and steam/hotwater exchange set. There is a Swingbend panel with 8 connections x 2,5" SMS connections to connect the in and outgoing lines of milk and CIP loops. Operation by touch screen. Controls: Siemens Simatic S7 and Color HMI (needs repair). Jumo temperature recorder. Skid made by Tewes Bis (Poland) model: UPM. Documentation: Operating manual (English, Polish and Romanian), Electrical diagrams and APV plate heat exchanger instructions. Total dimensions: 295x160x260 (lxwxh) cm - weight: 1.890 kg.
