Azo Abscheider D500xD200x1342h

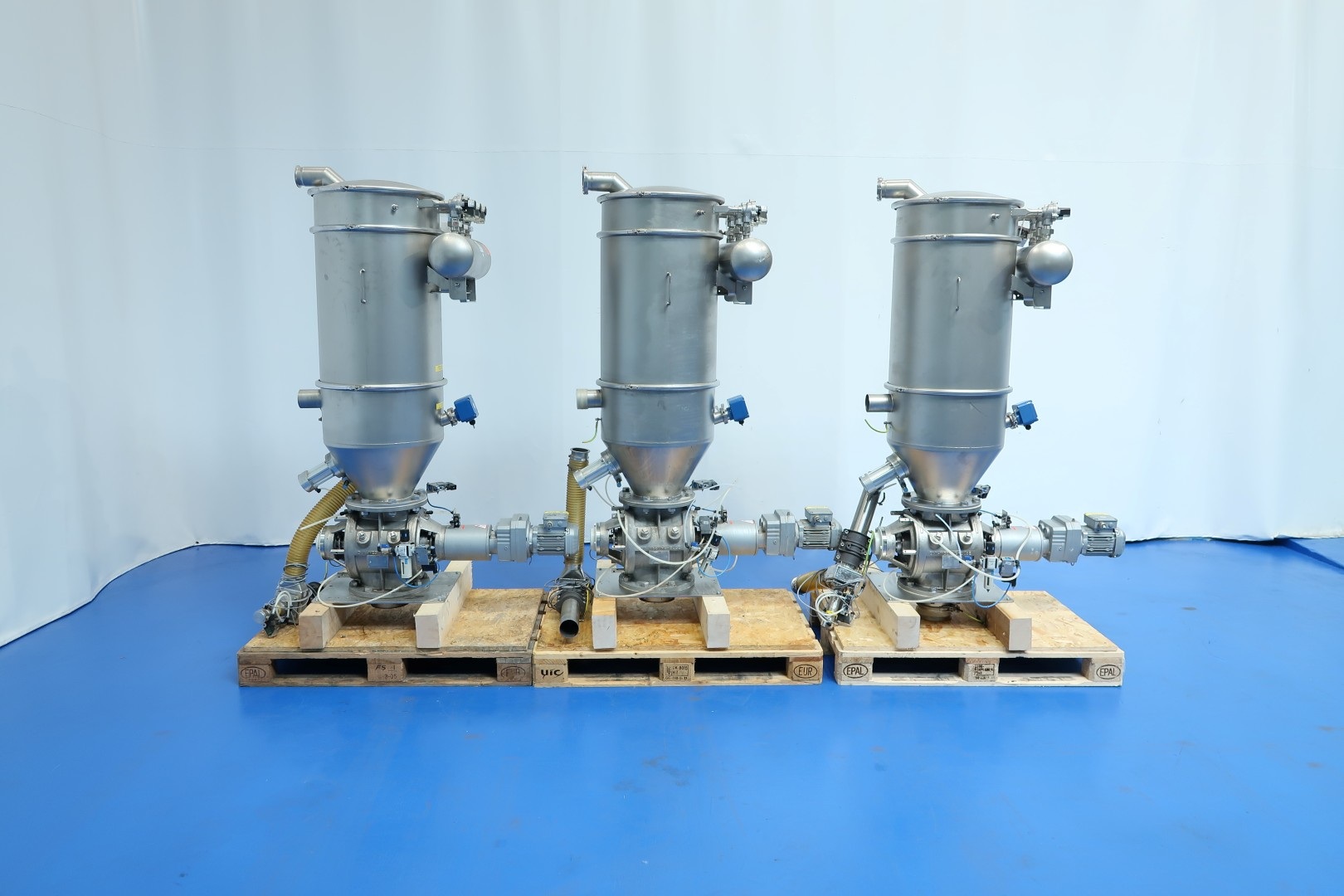

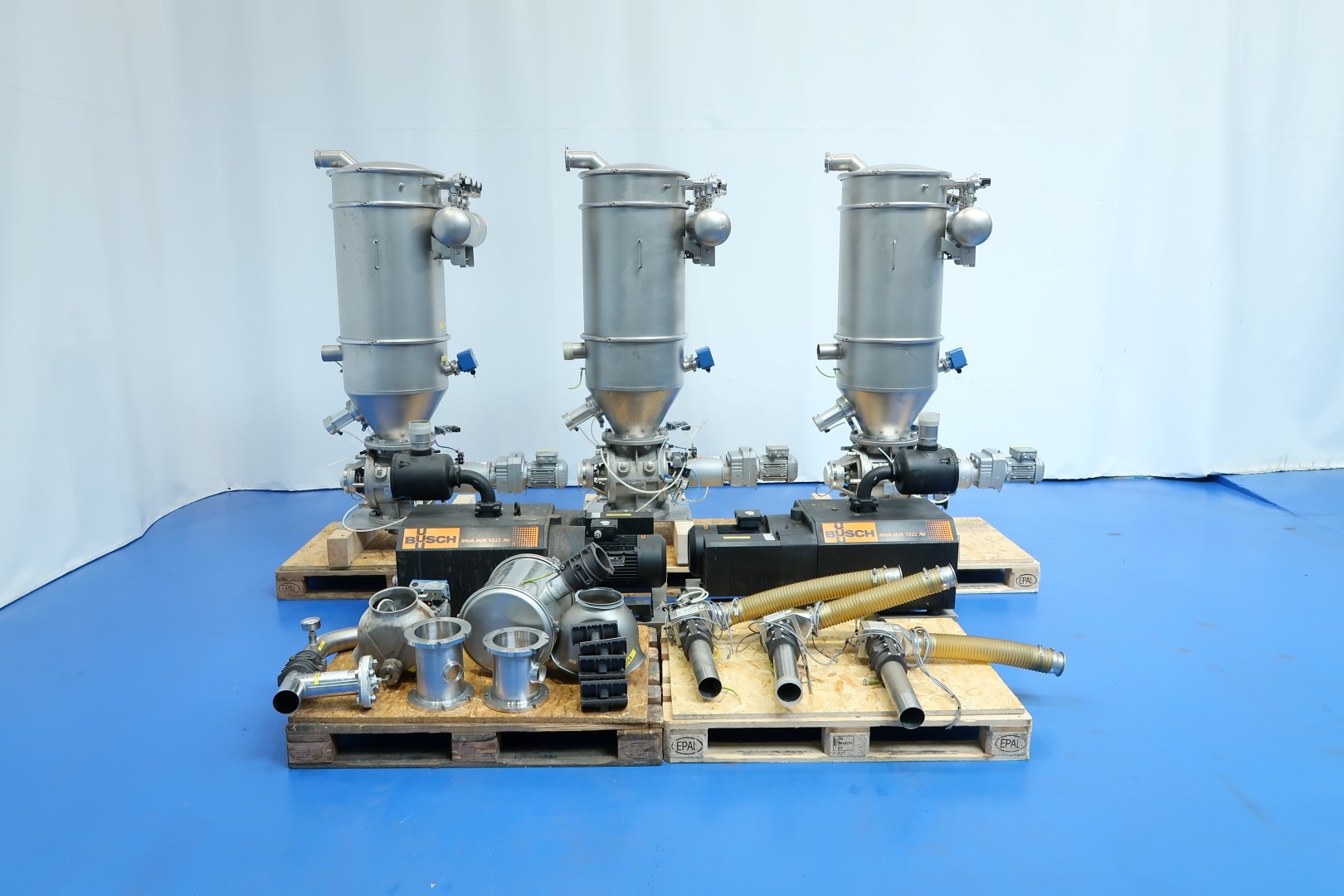

Pneumatic transport and dosing system for powderlike products. 3 Sets, each consisting out of:
-) Separator with filter element(s) (to separate the product from the delivery air), with compressed air tank
-) Angle valve, for regulating vacuum (Azo EV 80B E2 XL)
-) Level sensor in separator (VEGAWAVE 61)
-) Pneumatic rapper in separator, situated below at hopper to screw doser (AZO KD50/176)
-) Screw doser with MZC Rotating powder lock (Type AL200 2D)
-) Safety filter (1 piece),

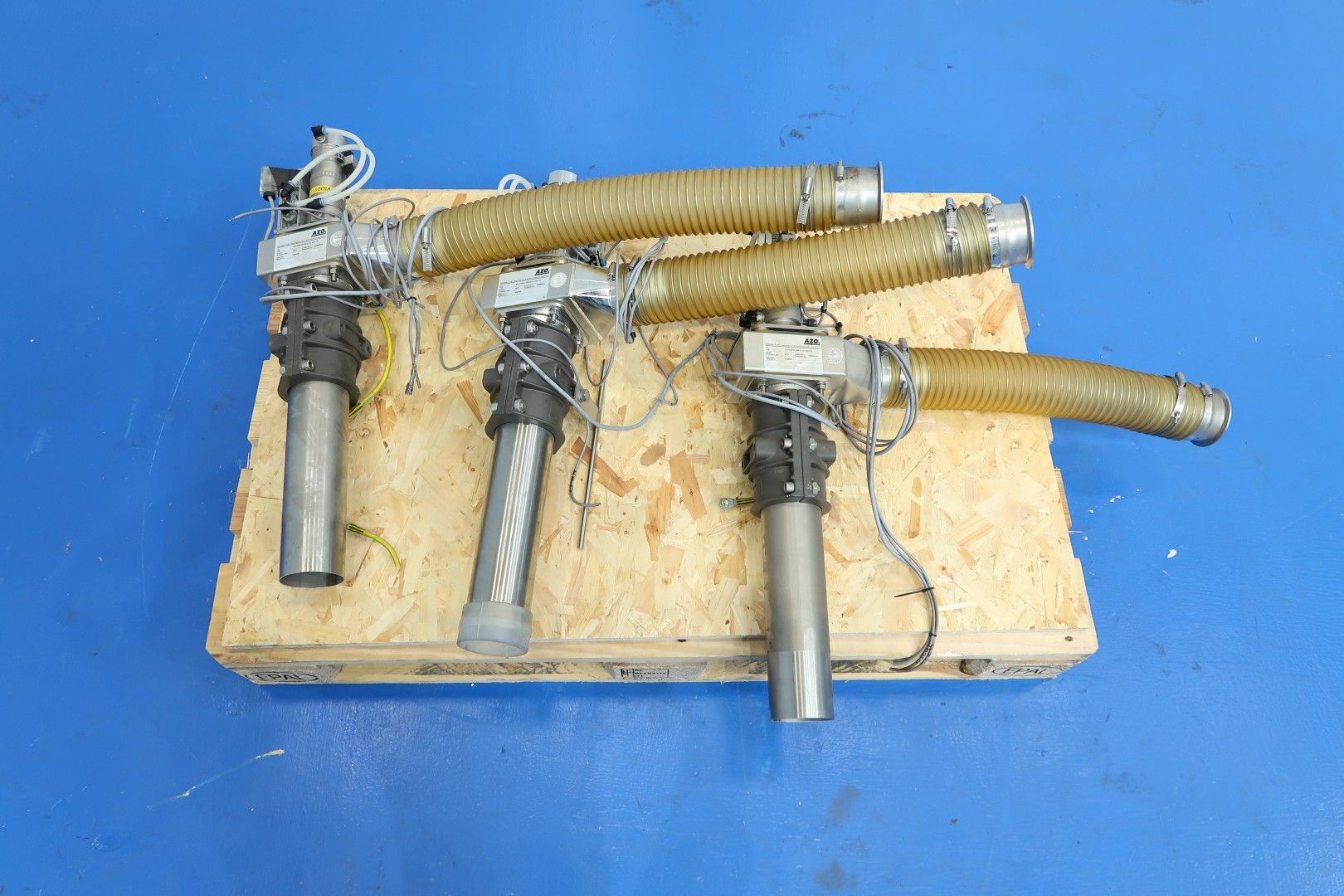

-) Y-valve box with pneumatic rotary cylinder (to changedestination - trouser 2 pieces)
*At the bottom of the separator has an air flow system to prevent wet vapors ascending to the separator via the falling tube.
Capacity depending on transport length, height difference, corners and product density. Fall through air lock system.

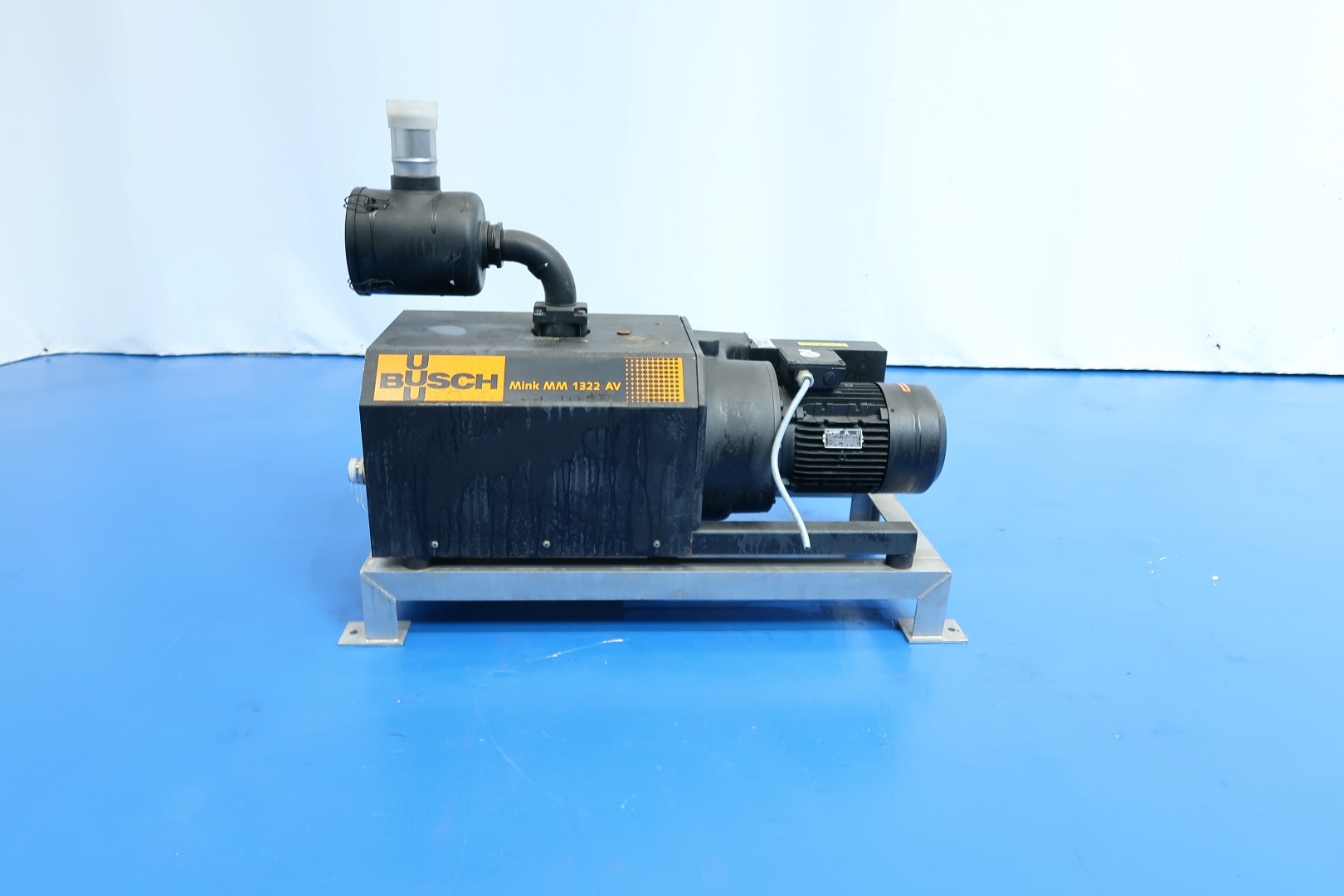

With 2 x Busch Vacuum pump (MM 1322 A VV8 - capacity max 360 m3/h pp) and with 1x DMN PTD-II tube change valve with a static seal (cross for switching product flow).
System was previously used for Semolina, Oatmeal, Rice, Barley and Wheat. Currently without bag emptying cabinets.
