Lekkerkerker
Lekkerkerker CIP-unit

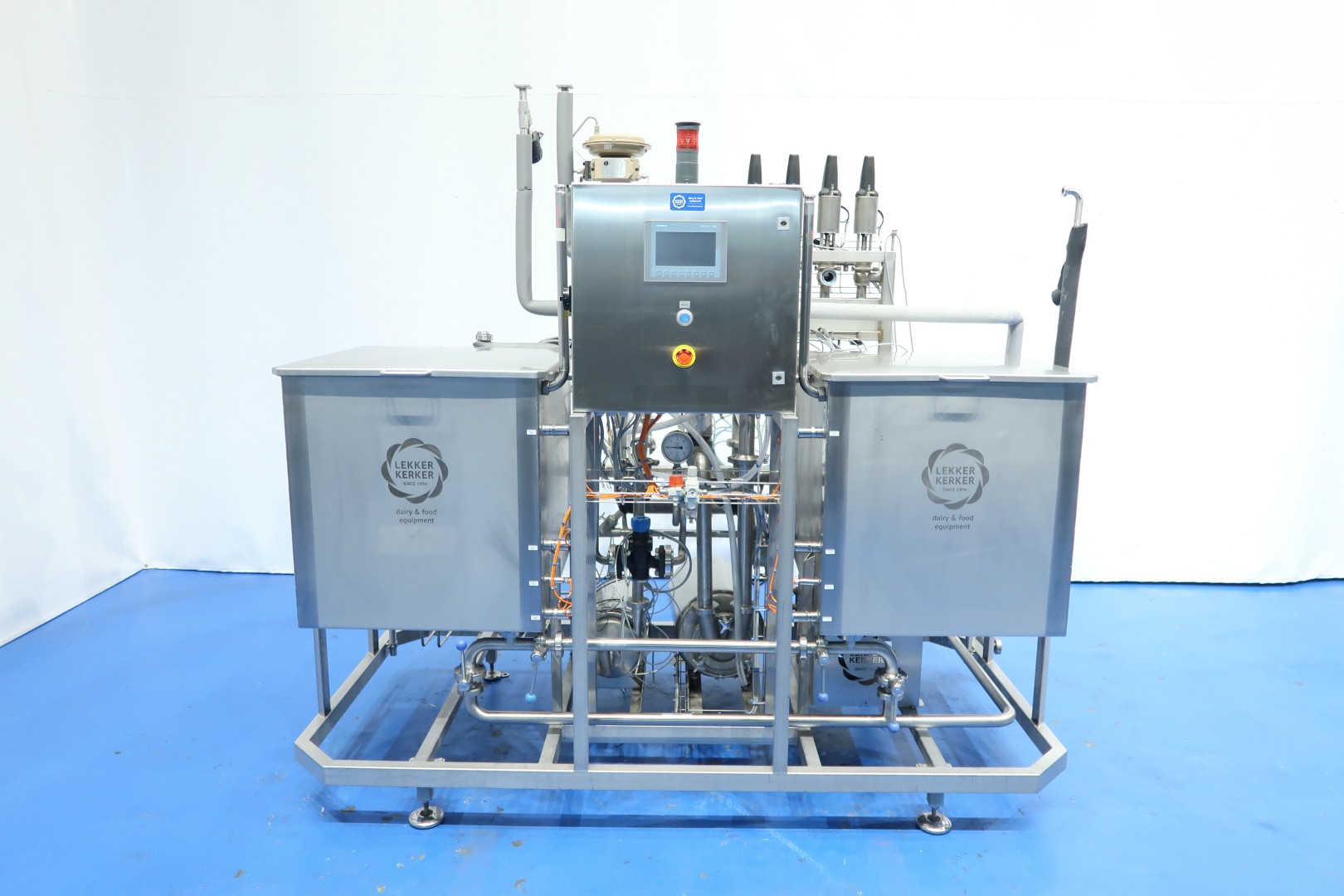

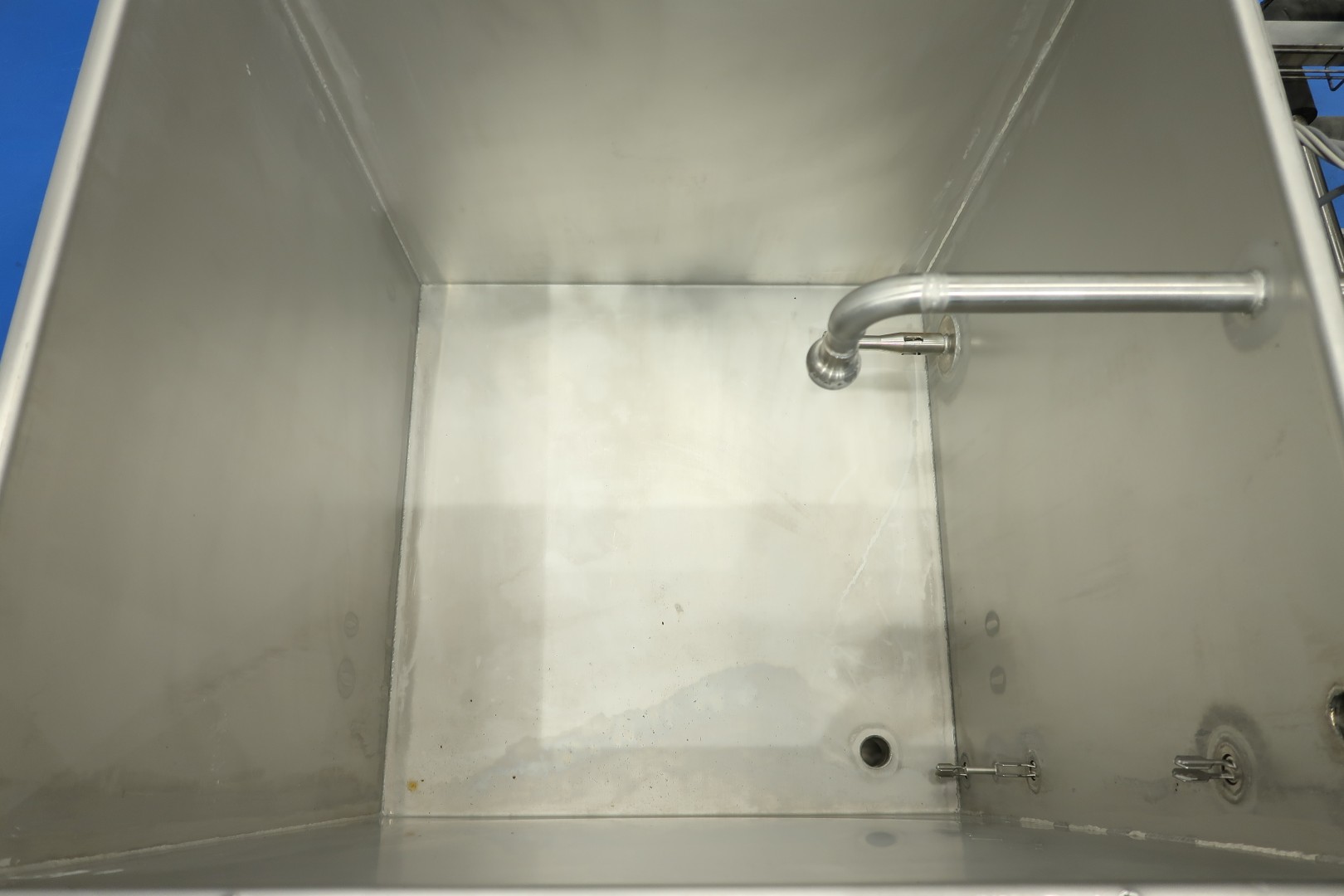

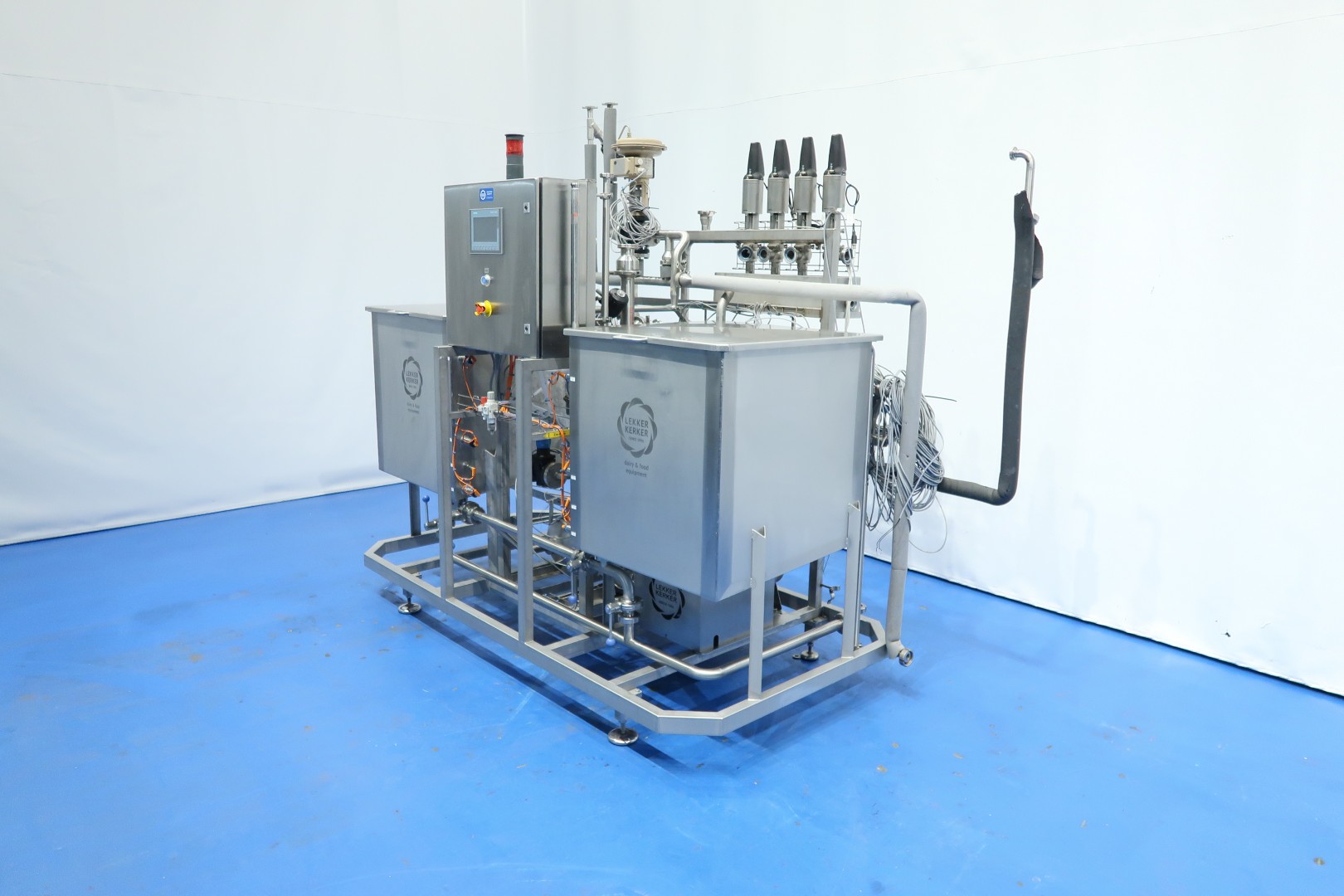

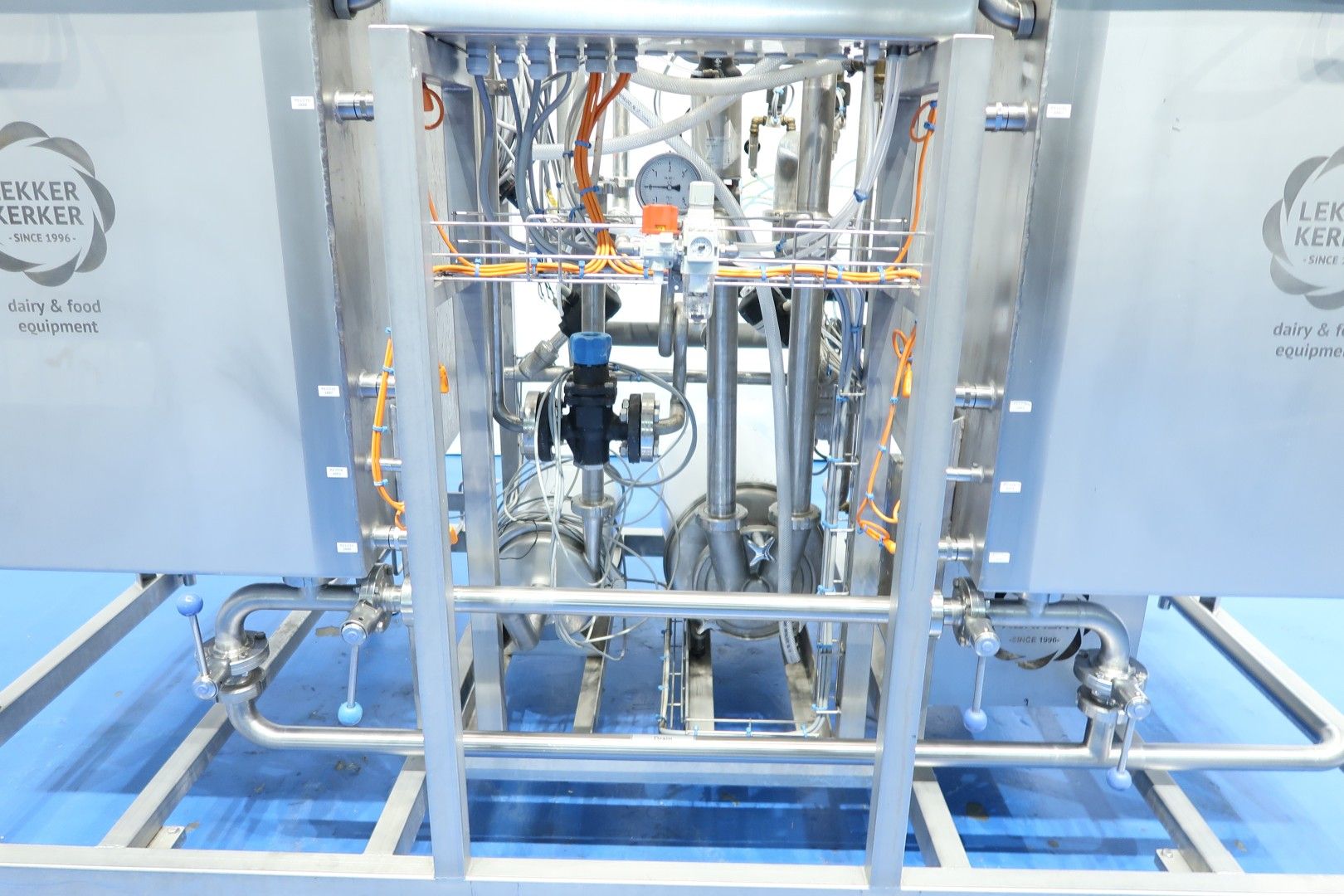

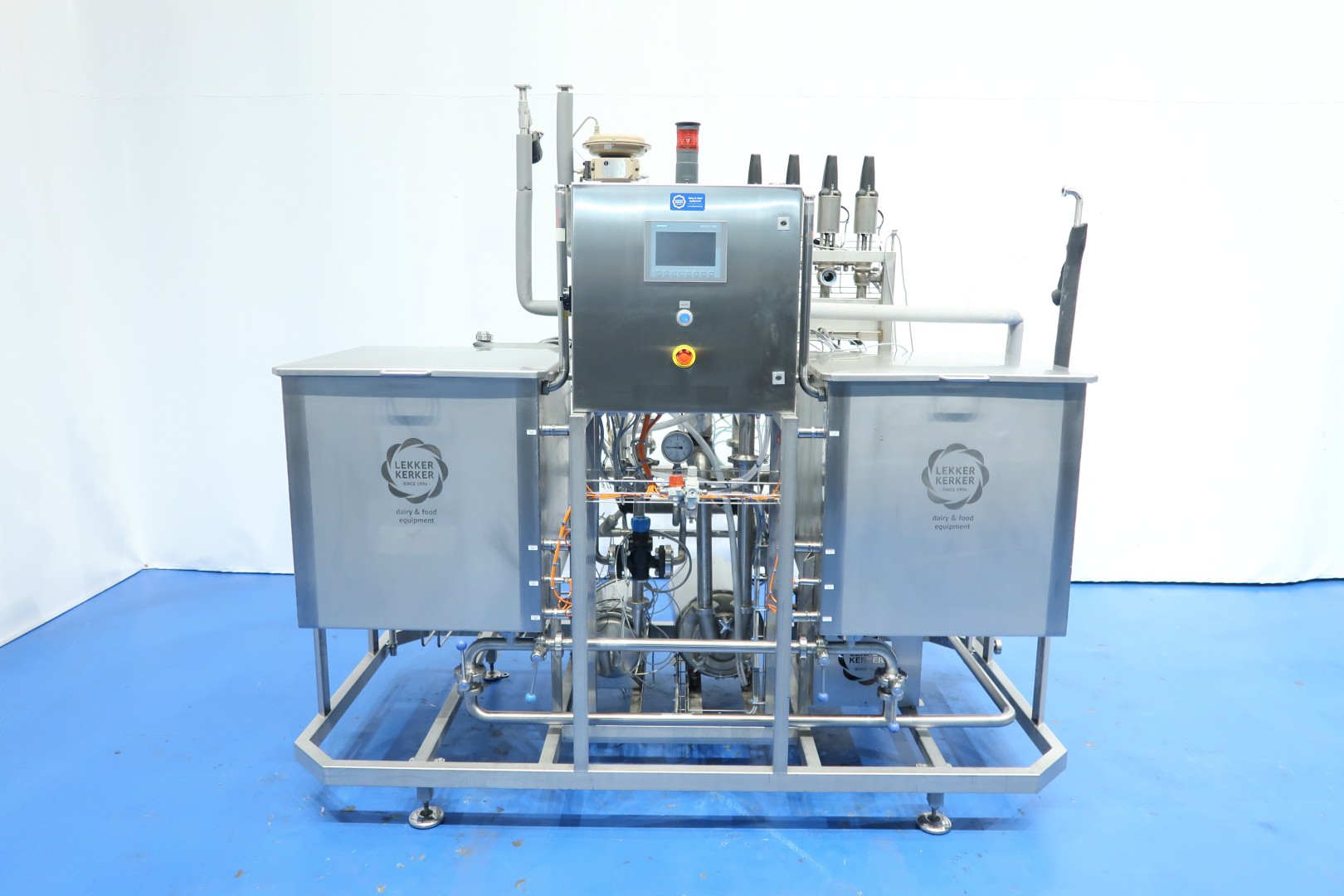

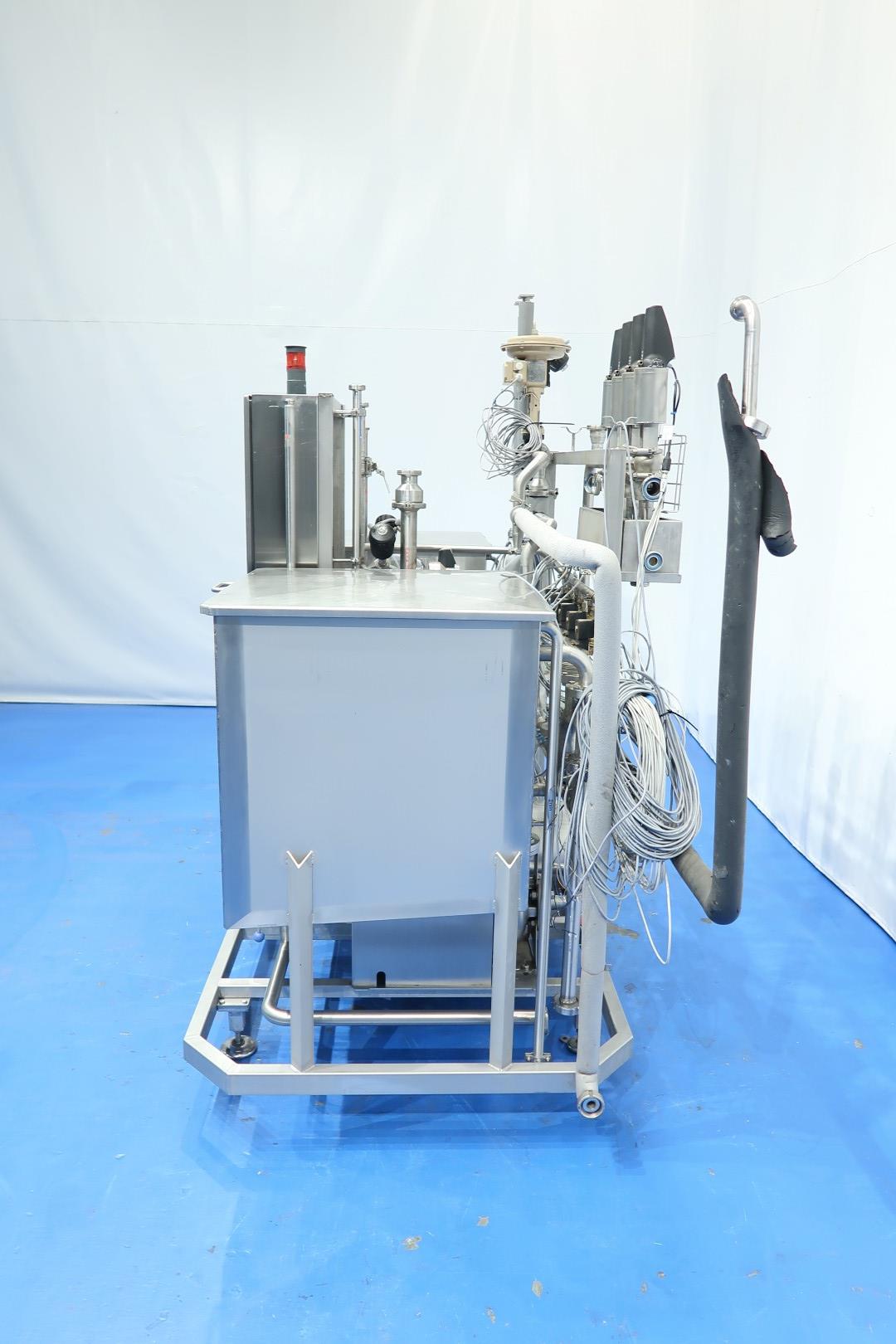

Semi automatic CIP unit universal to clean tanks, pipework, filling machines, Existing of a skid mounted unit with 2 square tanks with cover, Volume: 350 liter each tank. Steam heated with direct steam injector in both tanks. Tank1 for clean water - warm or cold with possibility to add a desinfectant, Tank 2 for cleaning dertergen (ly/Acid or a combined detergent), both tanks have an automatic temperature control, water inlet and level control, spraybowl to clean the tank itselves. sensors high and low level, temperature. Overflow/breather connection. Feed line with a Centrifugal pump, capacity controllable with a manual control valve (type: SMOR) from 5.000ltr/h at 2,5bar till 20.000ltr/h at 1,9bar make: Fristam, 2,2kW in the return line a self priming pump 3kW, conductivity- and temparature sensor. Protections programmed: low level sensor with alarm sign to prevent running dry of CIP+ pump. Manual dosing of cleaning detergent and desinfectant by volumetric dosingpump, the pump counts the liters, by pushing the dosingbutton the right amoung can be dosed. A drumholder for 25ltr drums of detergent. The unit is prefab made with piping, cabling and all manual and automatic valves, controlled by Siemens S7-1200 PLC and Siemens Simatic HMI touch screen. Total dimensions: 120 x 235 x 210 cm. Complete with manuals, CE marked. The same unit can be offered bigger or smaller sized on request.
