Scanima SRB 200

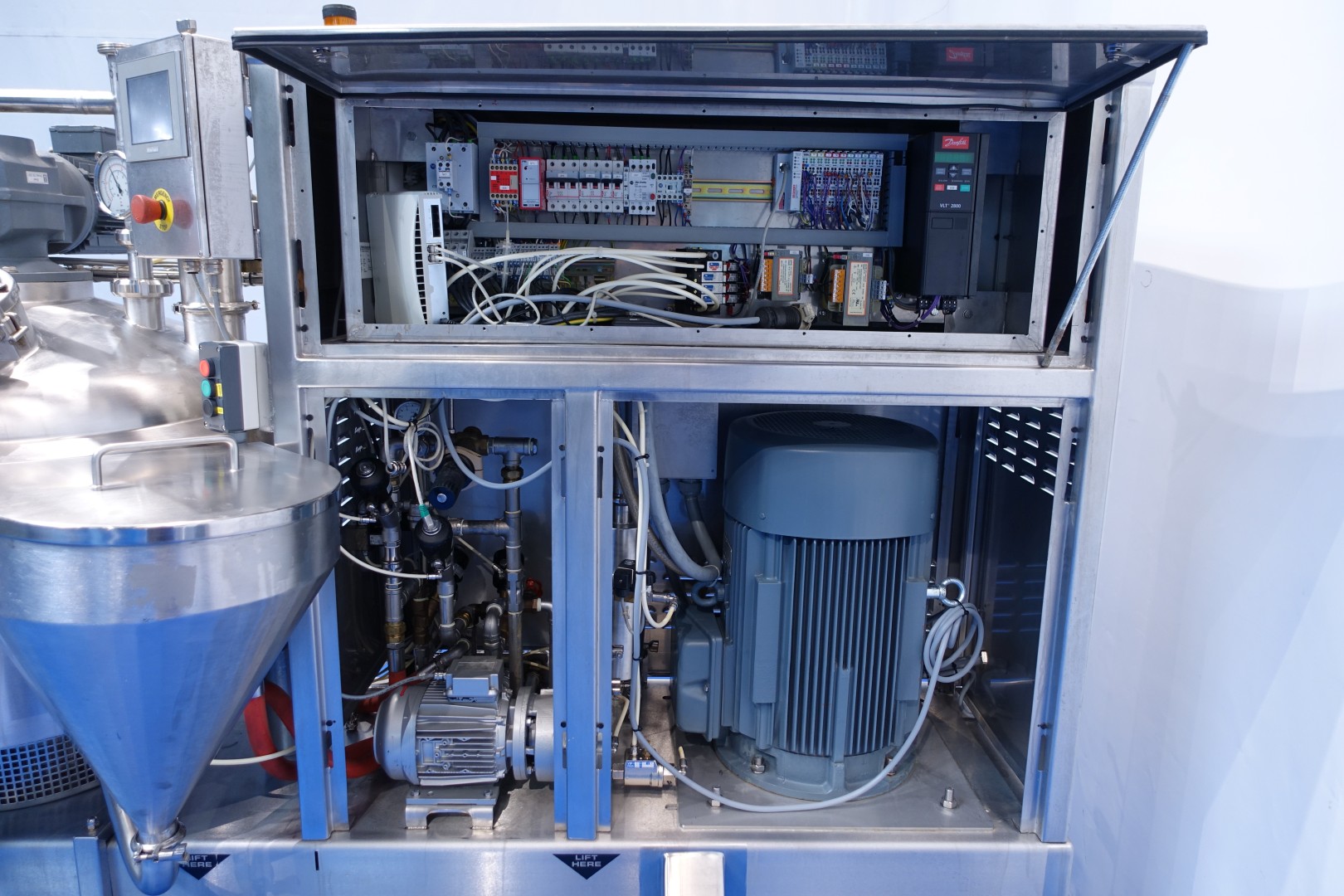

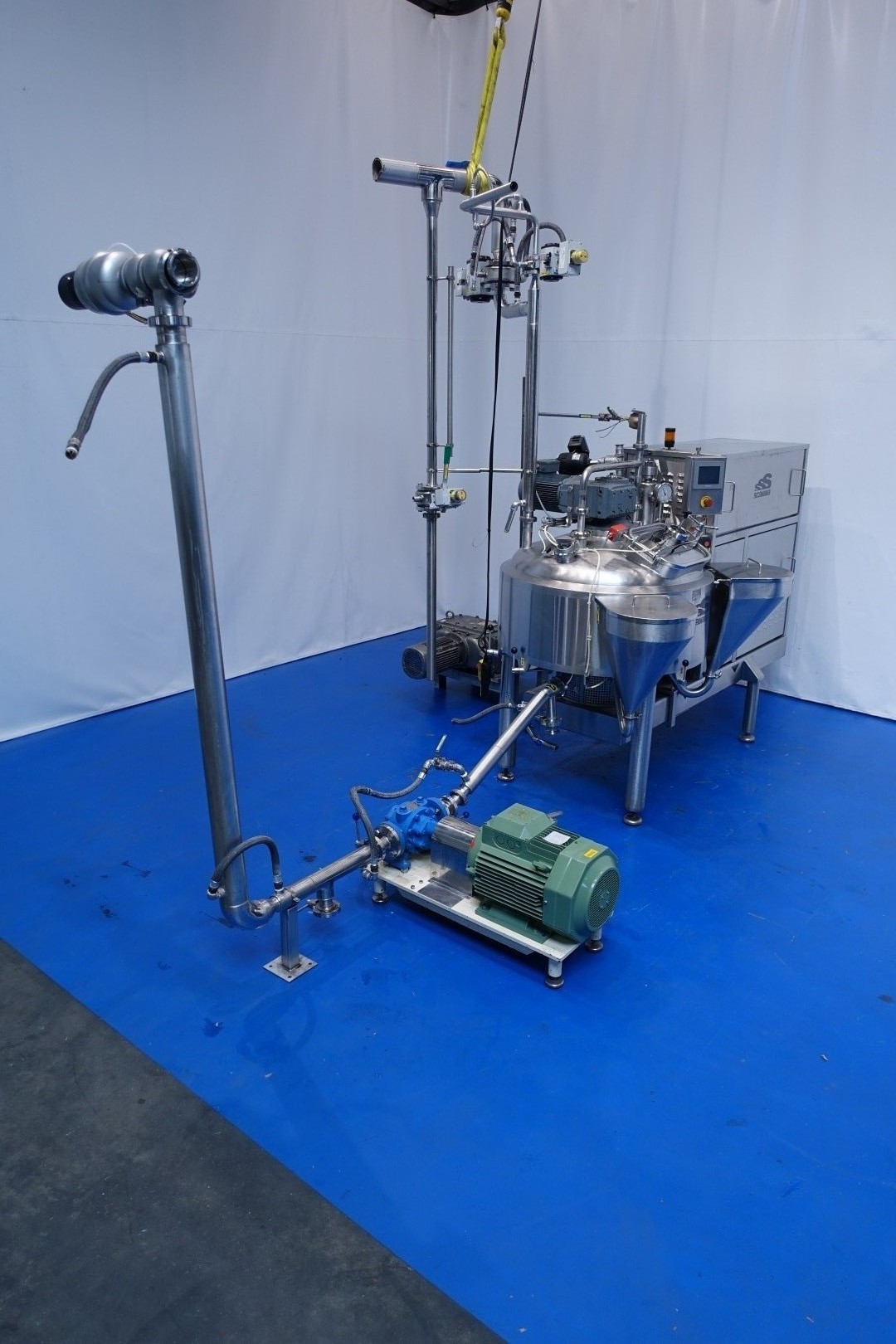

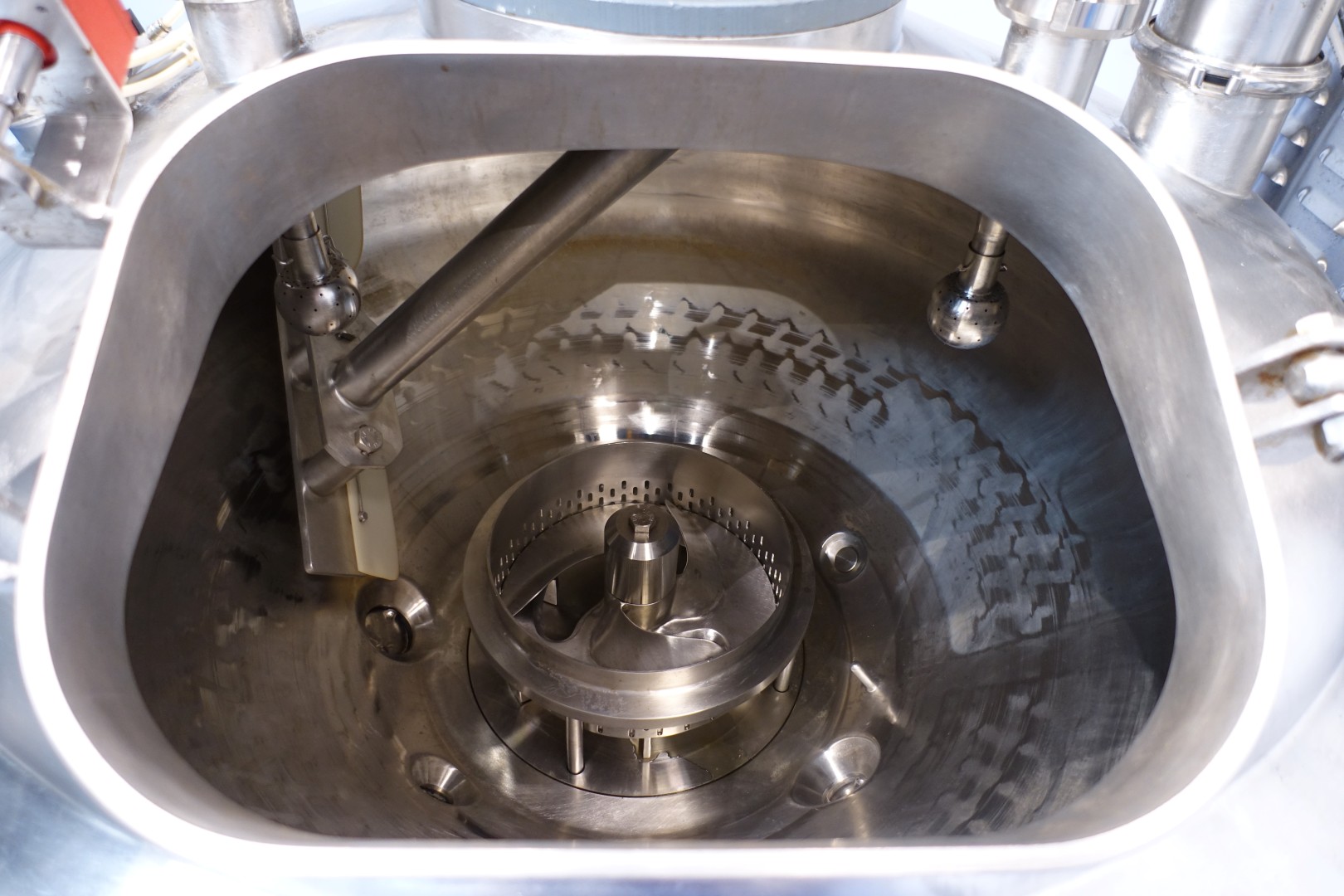

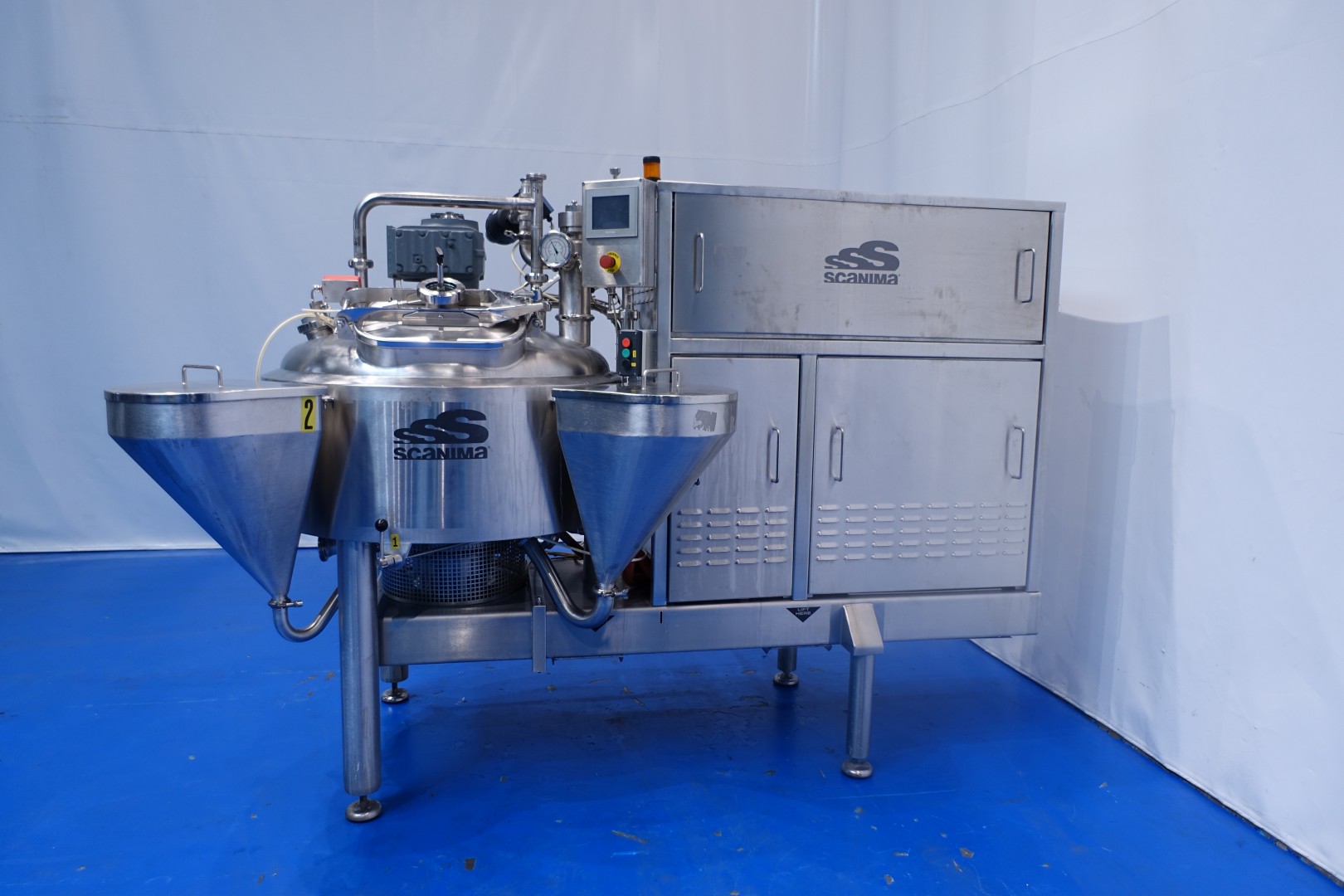

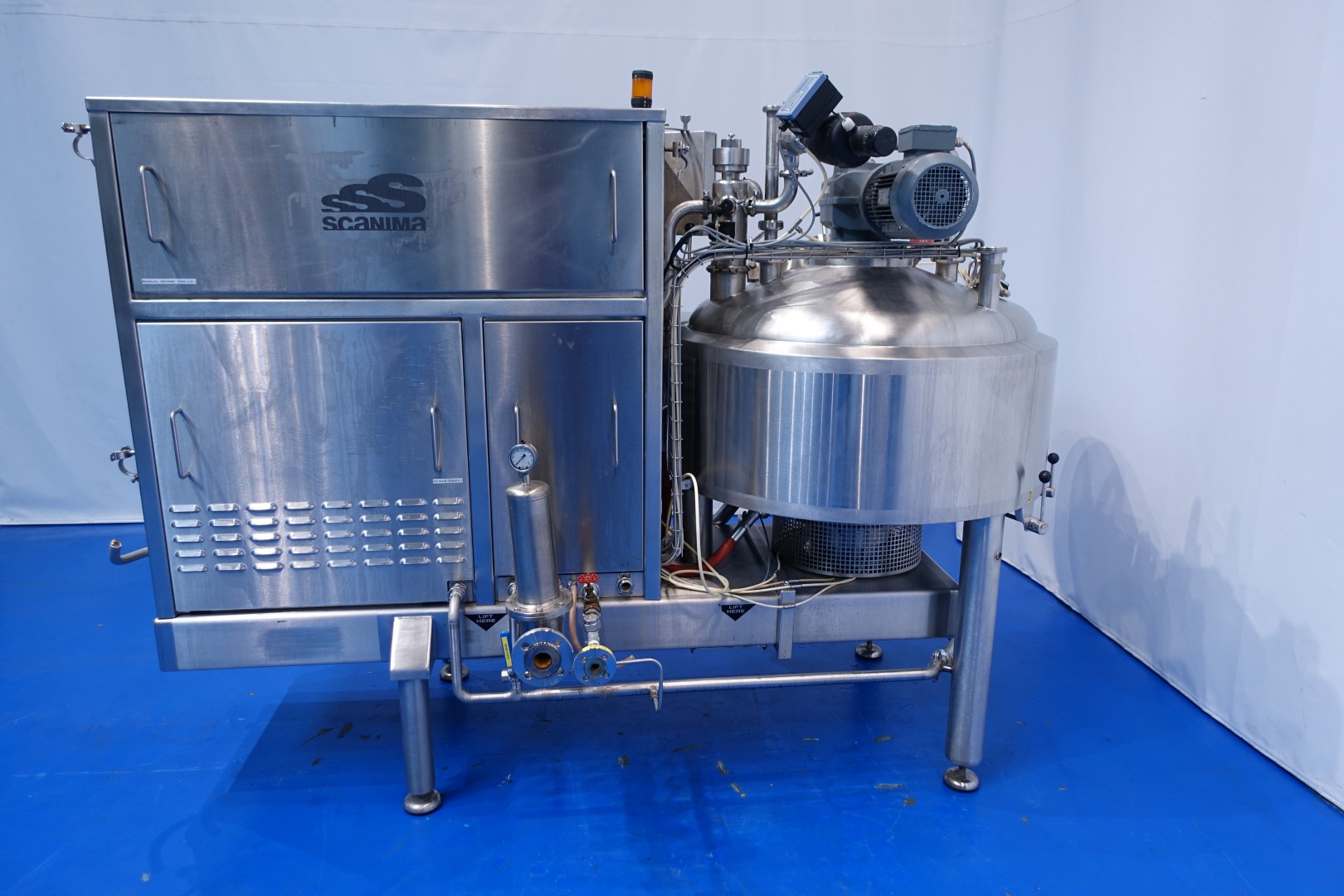

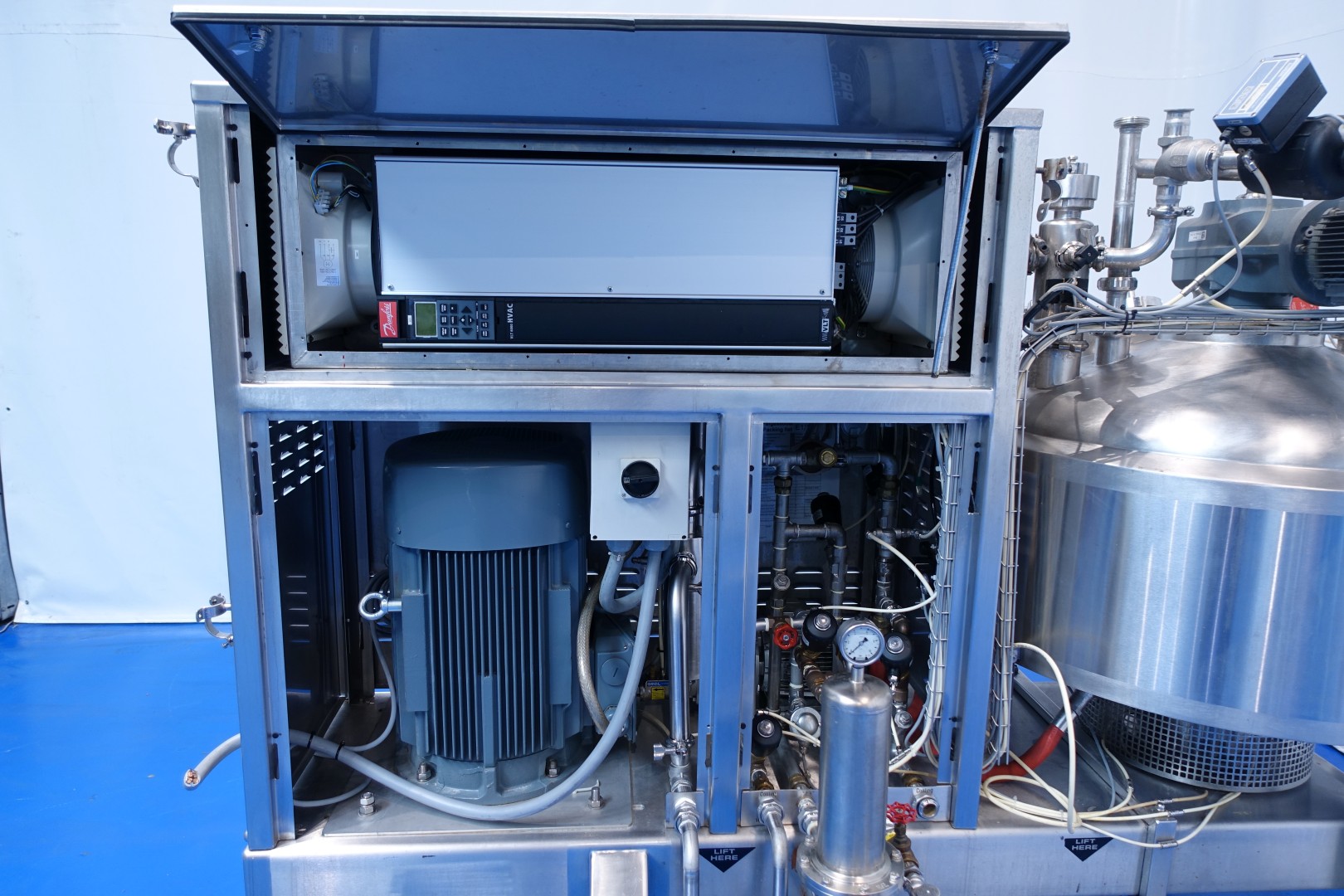

Almix Scanima high shear, universal vacuum mixer, powder dissolver, with double jacketed Buffer Tank volume: 300 liter / net. volume 200 liter, 2x spray bowls for cip, with scraper agitator (2,2 kW - 4,7A - n1: 1.410 rpm - n2: 24 rpm). Lamp on tank and sight glass with wiper in lid of manhole. Bottom mounted high shear turbo mixer with a disintegration high shear head (motor: 45 kW - 76 A - 2.940 rpm). Vacuum capable in vessel -1/+0 Bar, pressure in Jacket up to 4 Bar (for heating by steam or cooling on the jacket). With pressure indicator and build in liquid ring vacuum pump, Make Busch. 1,5kW, enables cooking or processing under vacuum conditions and also for de-aeration of product while mixing. A PT100 temperature sensor in bottom, Direct Injection valve in bottom for direct heating by Steam or Nitrogen. 2x ingrediënts hoppers for powders and inlet with manual butterfly valves, this way the powders can be sucked in direct next to the mixing head by the vacuum. With a control panel with frequency convertors and a HMI touch screen operator panel. Beckhoff BC9000 PLC. Documentation: electrical diagram. Total dimensions Scanima: 265x190x219 (lxwxh) cm - weight: 1.240 kg. With double jacketed piping, valves and 2 x pumps. 1 G&A 1,5 GRM C1 (gear wheel pump 22 kW - 37A - 1.470 rpm) used for emulsions (fatt /vegetable oils mixtures) and 1 P.I.V. pump (Glucose-pump) with manual reductor.
