Steiner
Steiner Apparatebau GmbH LK 1000

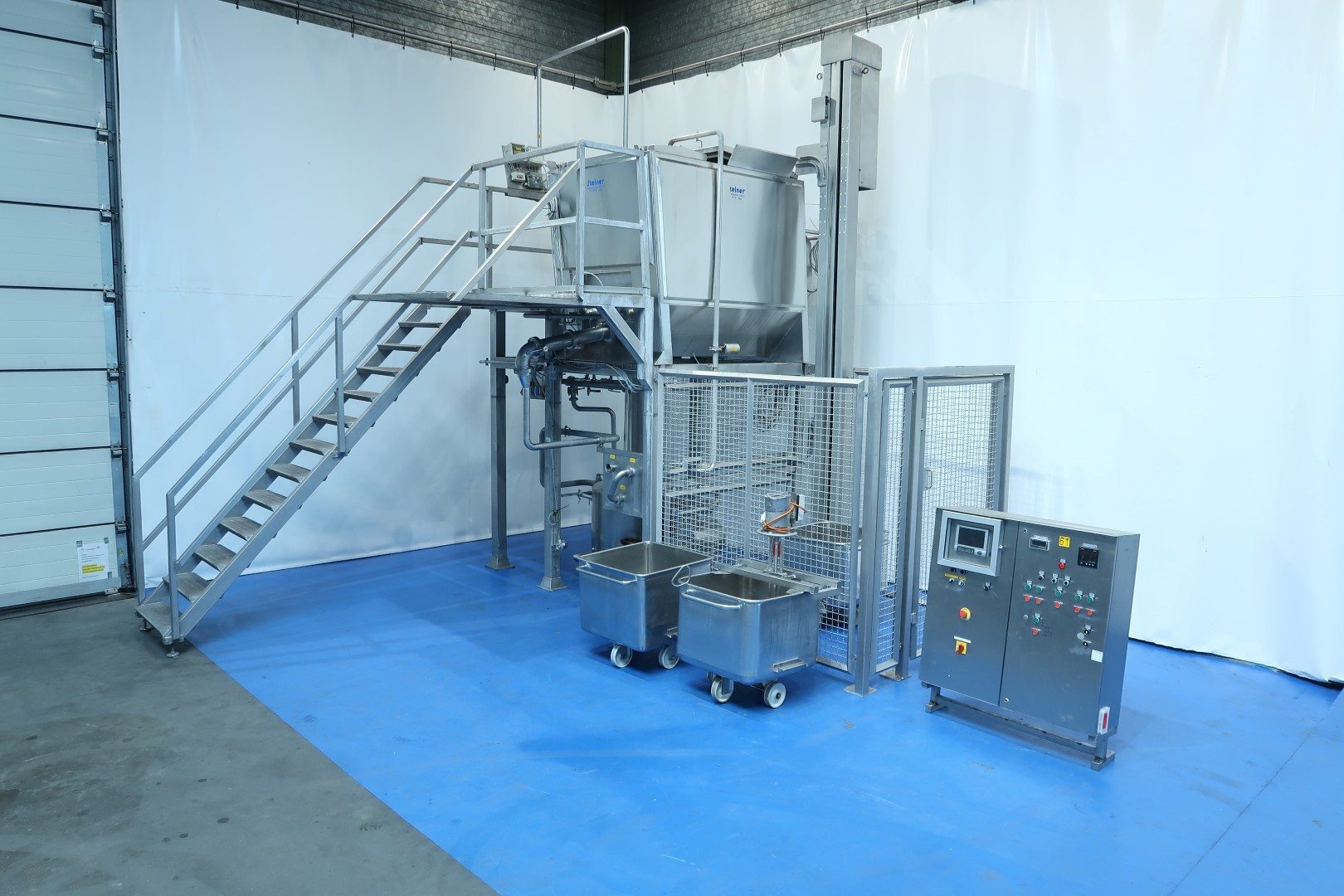

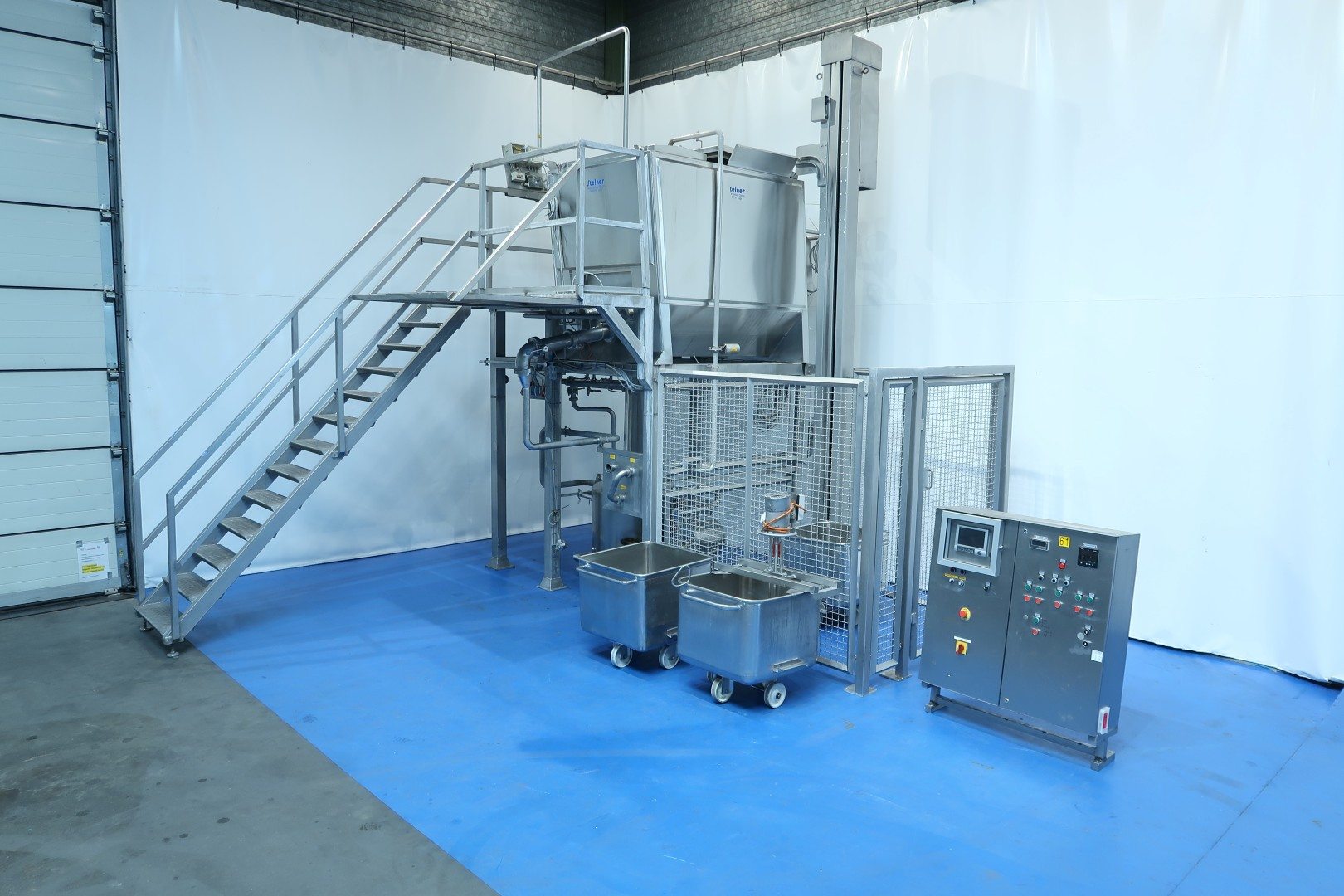

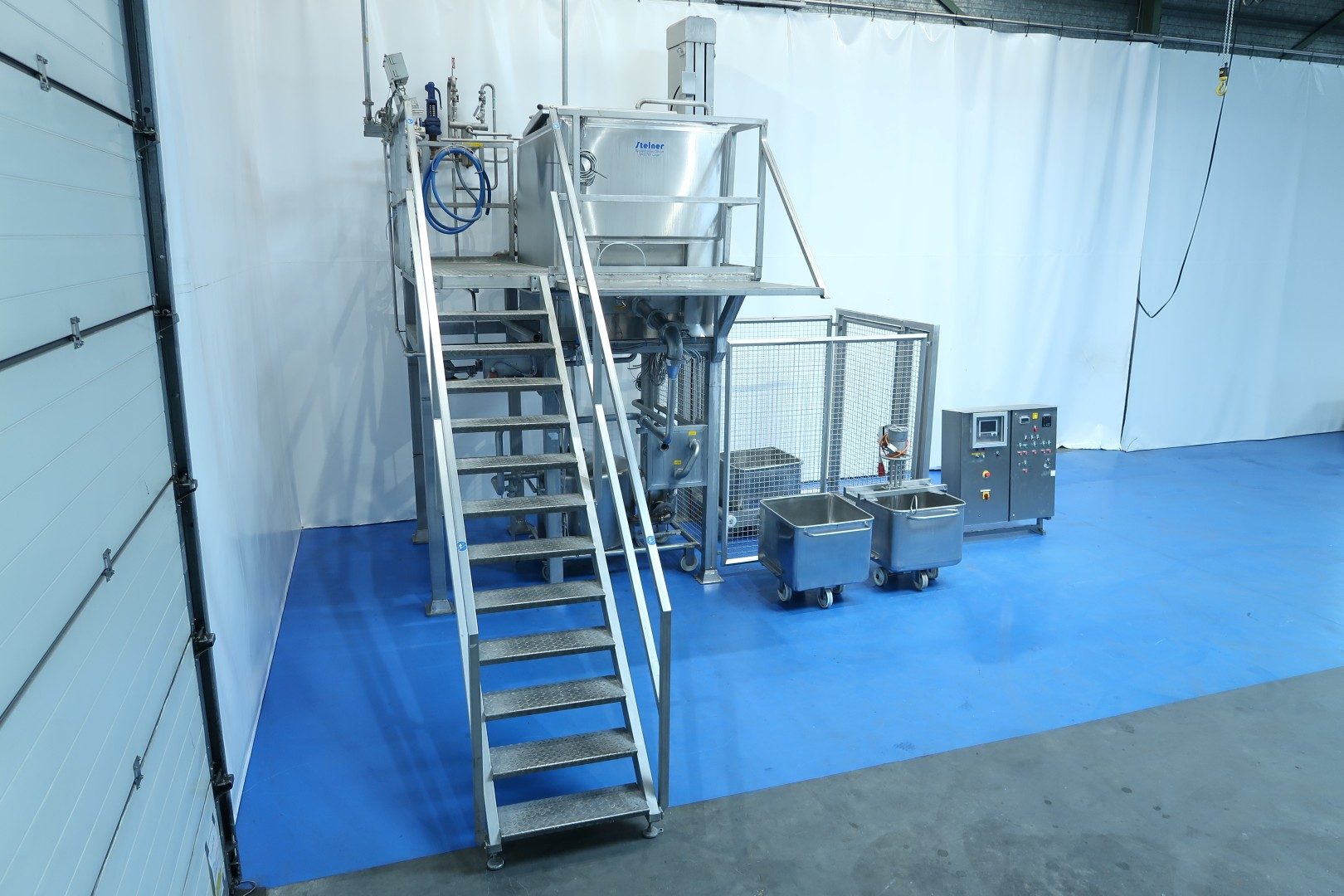

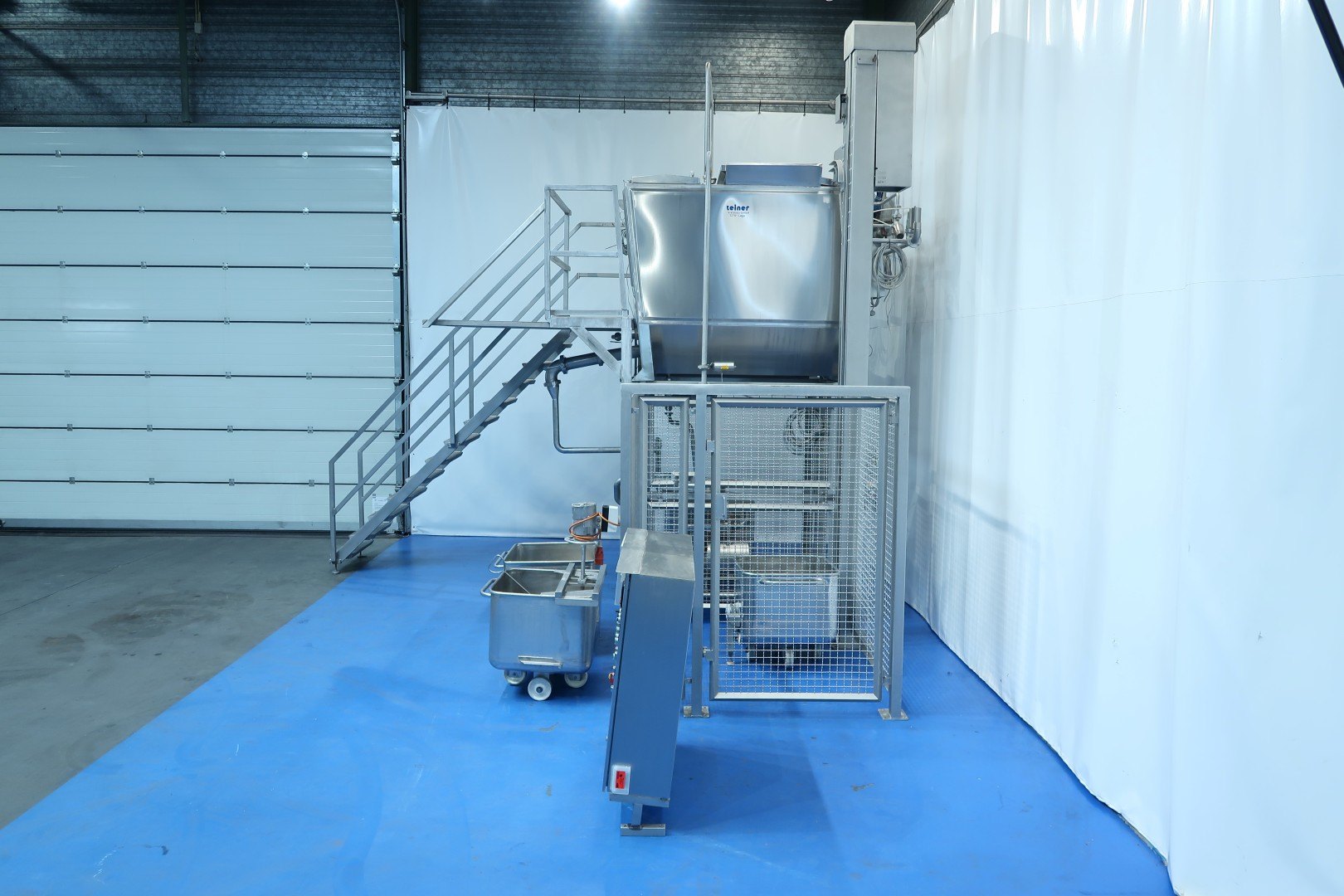

Complete cooking-mixing installation existing out of: SS support framework with working platform and stairs, mix cooking tank, trolley-bin elevator for loading with safety fence, 2x standard norm trolley, 1x norm trolley with build on mixer, balance vessel with pump, control panel, swingbend panel, valves and piping.
Previously used for making red berry compote.
Steiner mixtank double jacketed and insulated with centered scraper agitator, motor: 1,5 kW - 3,6 A - 2.860 rpm - n2: 10 rpm- 50 Hz. Full scraping coverage along the sides with spring-loaded teflon (PTFE) scrapers. Stirring: speed adjustable (via Danfoss frequency convertor), time and interval adjustable. Mounted on SS frame under an angle of 12°. With 3x Cip Bowls. Insulated lid consists of two parts, big part for loading norm trolley opens en closes via aircilinder, small part manually both with safety sensors. Total volume: 1.250 ltr - working capacity: 1.000 ltr - inner dimensions: Ø 100 cm, 150 cm length and total height: 130 cm. Heating with saturated steam via jacket or via direct steam injection, 4 steam injection ports; two ports at the front and two at the back. 1x E&H temperature sensor to be able to check the filling temperature. Diessel flowmeter with control valve for water.

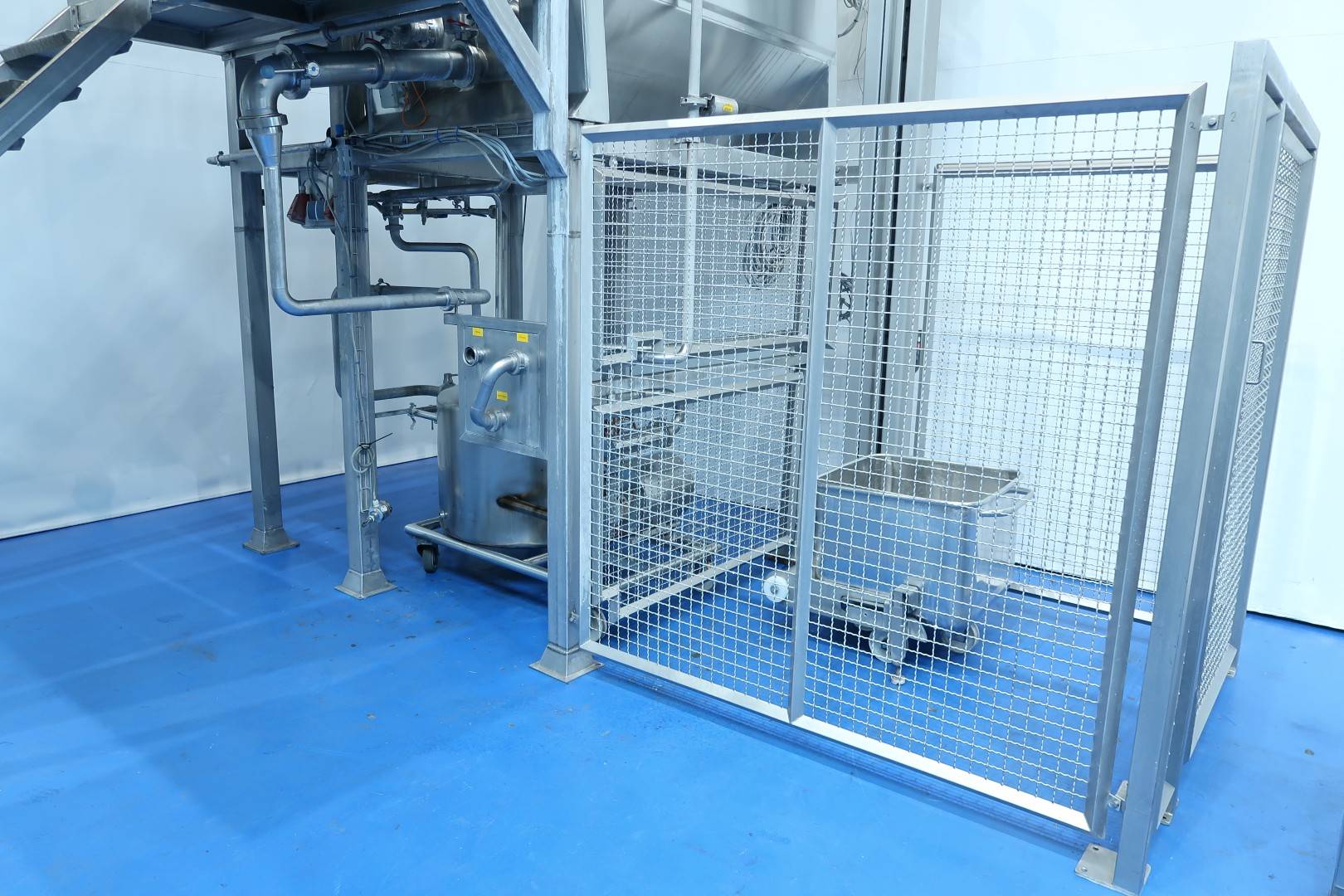

Elevator max 300 kg- can be operated on the floor and on platform. With position sensor on top. SS fencing with door with safety sensor.
Trolley mixer in height adjustable with agitator for dissolving. Trolley capacity: 200 liters, mobile with lifting strips.

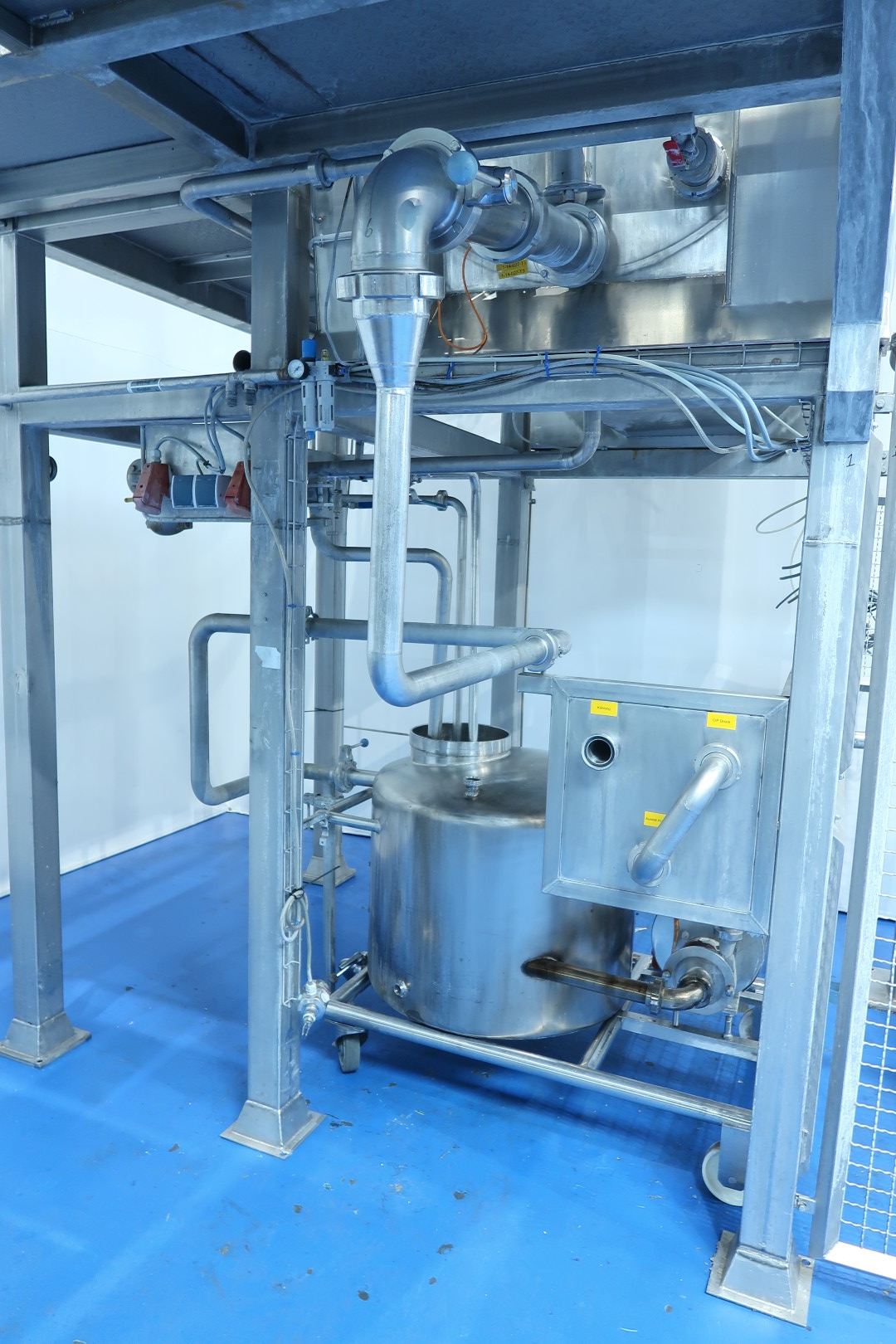

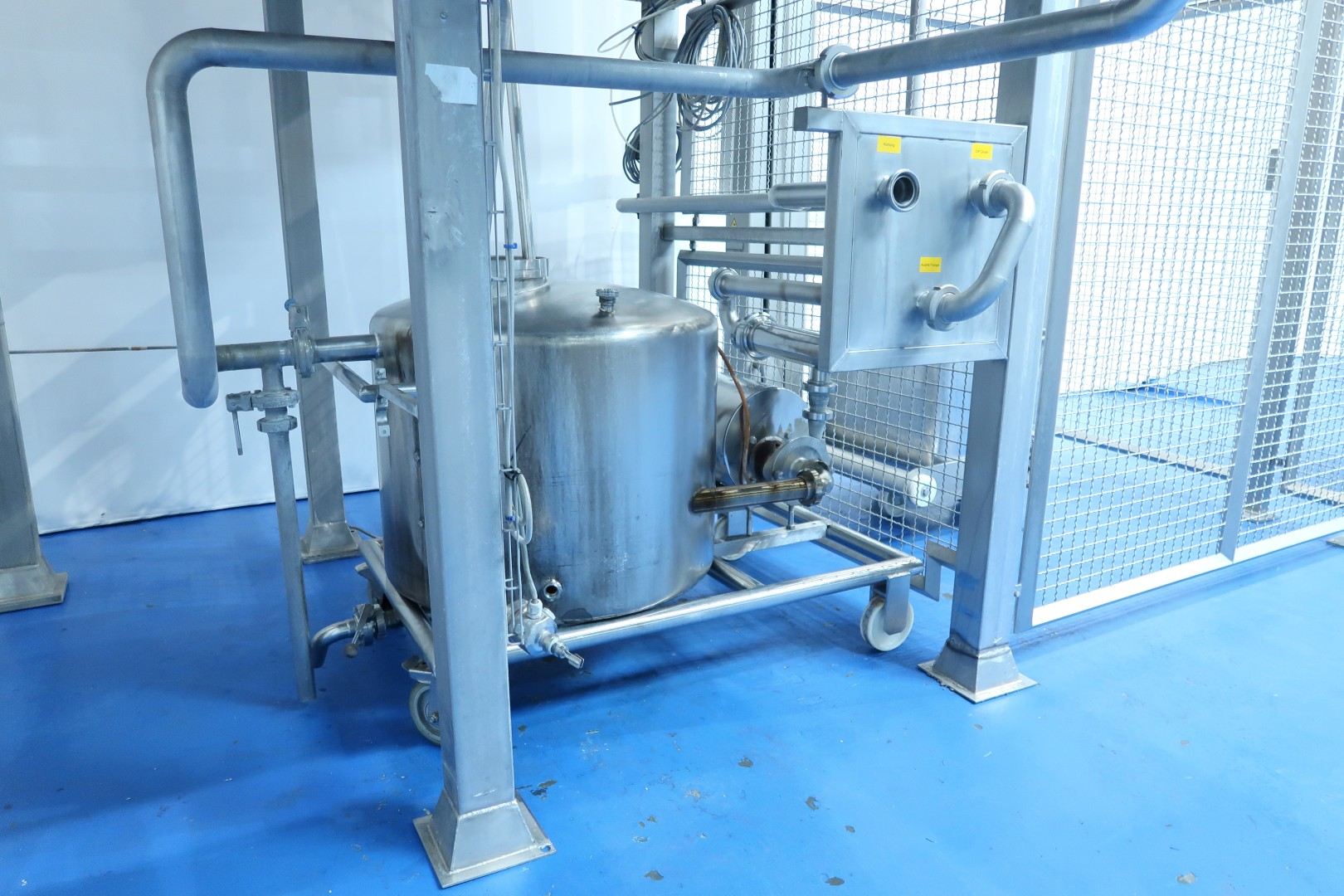

Balance vessel and pump on mobile frame, vessel 300 liter (Ø 80cm - H 65 cm), 1 x level sensor low - with perforated cip pipe. Fristam pump impellor Ø 125 mm (serial nr. 41436218) motor: 1,5 kW - 3,6 A - 50 Hz - 2.860 rpm, connections in: DN50 Din - out: DN40 Din.
Condition: good. Documentation: electrical diagram. Total dimensions: 540x430x450 (lxwxh) cm.
